DwyerOmegaCL541-PLUS-series

CL541-PLUS

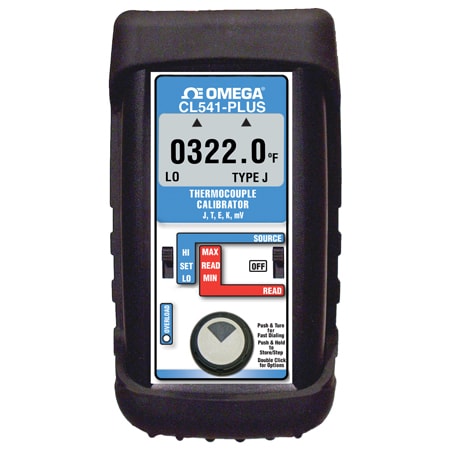

Automated Thermocouple Calibrator

가격: 3,369,280 원

VAT 10%: 336,928 원

총 금액: 3,706,208 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.008 %

Accuracy Detail:± (0.008% of Reading + 0.006 mV)

Additional Features 1:Read & Source Signals

Battery Indication:A low battery indication is displayed when the battery voltage drops below the operating level

Battery life:50 hr

Cold Junction Compensation:± 0.1°F

Display Type:LCD

Display Type Note:High contrast graphic liquid crystal display, LED backlighting for use in low lit areas

Height:40.64 mm

Length:143 mm

Operating Temperature, Max:60 °C

Operating Temperature, Min:-25 °C

Over-Voltage Protection:Over-voltage protection to 60 Vdc (rated for 30 seconds)

Relative Humidity Note:10% ≤RH ≤90% (0 to 35°C), non-condensing; 10% ≤RH ≤70% (35 to 60°C), non-condensing

Relative Humidity, Max:0.9

Relative Humidity, Min:10%

Supply Voltage:6 Vdc

Thermocouple Type:J, K, T, E

Voltage Read:Input Impedance: >10 MΩ Open Thermocouple Threshold: 10,000 Ω nominal Pulse: <10 microamp pulse for 300 milliseconds Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB

Voltage Source:Output Impedance: < 0.3 Ω Source Current: > 20 mA (drives 80 mV into 10 Ω) Noise: ≤4 microvolts p-p for frequencies of 10 Hz or below

Weight:12.1 oz

Weight Note:12.1 oz (including boot and batteries)

Width:76.2 mm
