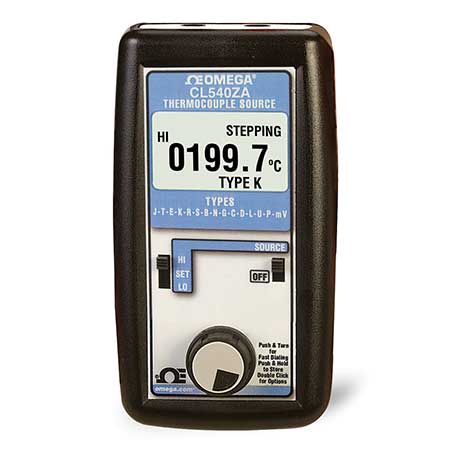

DwyerOmegaCL540ZA-series
CL540ZA
Thermocouple Simulator
- 가격
- 2,404,610 원
- VAT 10%
- 240,461 원
- 총 금액
- 2,645,071 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.015 %
Accuracy Detail:± (0.015% of reading + 0.006 mV)
Additional Features 1:Source Only
Battery Indication:A low battery indication is displayed when the battery voltage drops below the operating level
Battery life:50 hr
Cold Junction Compensation:± 0.25°C
Dimensions(Boot):144 L x 78 W x 52 D mm
Display Type:LCD
Display Type Note:High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Height:45 mm
Length:126 mm
Operating Temperature, Max:60 °C
Operating Temperature, Min:-25 °C
Over-Voltage Protection:Over-voltage protection to 60 Vdc (rated for 30 seconds)
Relative Humidity Note:10% ≤ RH ≤ 90% 0 to 35°C (32 to 95ºF), non-condensing. 10% ≤ RH ≤ 70% 35 to 60°C (95 to 140ºF), non-condensing
Relative Humidity, Max:0.9
Relative Humidity, Min:10%
Supply Voltage:6 Vdc
Thermocouple Type:J, K, T, E, R, S, B, C, N, L, G, U, D
Voltage Source:Output Impedance: < 0.3 Ω Source Current: > 20 mA (drives 80 mV into 10 Ω) Noise: ≤ 4 microvolts p-p for frequencies of 10 Hz or below
Weight:238 g
Weight Note:238 g (8.4 oz) (including batteries)
Weight Note(Boot):311.8 g (11 oz) (including batteries)
Weight(Boot):311.8 g
Width:69 mm
