DwyerOmegaCL532-Calibrator
CL532

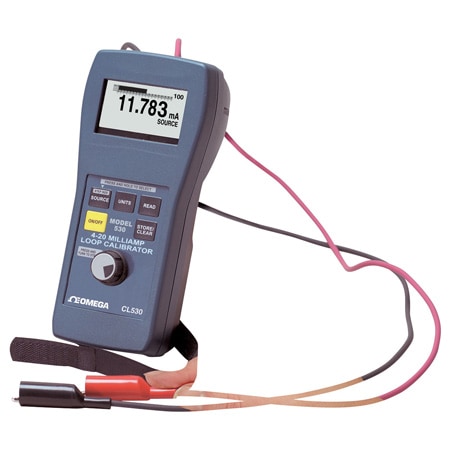

Milliamp Loop Calibrator
- 가격
- 4,259,180 원
- VAT 10%
- 425,918 원
- 총 금액
- 4,685,098 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
2-Wire Transmitter Simulate:Adjust loop current from 0 to 24 mA or -25 to 125% when powered by an external supply; LOW SUPPLY flashes to indicate a misconnection.
Accuracy:± 0.012 %
Accuracy Detail:±0.012% rdg + 0.004 mA
Battery Size and Type:Alkaline 9V
Battery life:18hr
Display Type:High-Contrast Display with Bar Graph
Electrical Connection:Alligator Clips
Height:180 mm
Lead Length:610 mm
Length:56 mm
Loop Supply Limits:2 to 60 Vdc; Drive Capability: 1200 Ω at 20 mA for life of battery; Burden: <2V at 20 mA
Measuring Range:Read Current: Read 0 to 24 mA or -25 to 125%; CURRENT LIMITED flashes at >24 mA, protecting devices in the loop.; Read DC Voltage: Read 0 to 60 Vdc with 2x overrange ability and flashing OVERRANGE indicator; Power Measure: Power the loop and read 0 to 24 mA or -25 to 125%; CURRENT LIMITED flashes at >24 mA, protecting devices in the loop.
Miscellaneous:EZ-Check Switch: Gives instant access to 4 and 20 mA or other user-set span limits; in read modes, he EZ-Check switch provides a max/min log of reading; EZ-Step Button: Allows one-handed stepping up and down the span in 6 different step sizes; Adjusts output by 0.001 mA (0.01%); EZ-Dial Knob: push and turn for 100x faster adjustment—by 0.100 mA (1.00%)
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Over-Voltage Protection:120 Vrms for 30 seconds, 240 Vrms for 15 seconds
Overcurrent Protection:24 mA DC
Relative Humidity:10% ≤RH ≤90% [0 to 35°C (32 to 95°F)], non-condensing; 10% ≤RH ≤70% [35 to 60°C (95 to 140°F)], non-condensing
Source Current:Source 0 to 24 mA or -25 to 125% into ≤1200 Ω; a flashing HIGH Ω indicator appears if improperly connected
Storage Temperature, Max:60 °C
Storage Temperature, Min:-30 °C
Temperature Effect:±50 ppm/°C
Weight:326 g
Width:84 mm
