DwyerOmegaCL510A-Series
CL510A-10

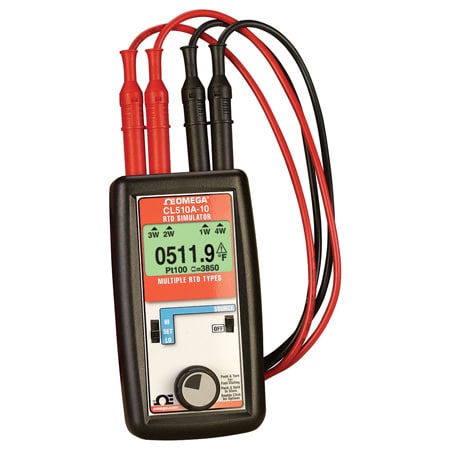

RTD SIMULATOR, 10 CURVES
- 가격
- 2,404,610 원
- VAT 10%
- 240,461 원
- 총 금액
- 2,645,071 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.015 %
Accuracy Detail:± (0.015% of reading + 0.05 Ω)
Additional Features 1:Supports 10 RTD curve
Battery Indication:A low battery indication is displayed when the battery voltage drops below the operating level
Battery life:50 hr
Display Type:LCD
Display Type Note:High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Height:45 mm
Length:126 mm
Operating Temperature, Max:60 °C
Operating Temperature, Min:-25 °C
Over-Voltage Protection:Over-voltage protection to 60 Vdc (rated for 30 sec)
Relative Humidity Note:Relative Humidity Range, 10% ≤RH: ≤90%: 0 to 35°C (32 to 95°F), non-condensing ≤70%: 35 to 60°C (95 to 140°F), non-condensing
Relative Humidity, Max:0.9
Relative Humidity, Min:10%
Supply Voltage:6 Vdc
Temperature Drift:± 0.05 Ω/°C
Type of RTD Signal:100 Ω, 1000 Ω
Voltage Source:Accuracy: From 1 to 10.2 mA External Excitation Current: ± (0.015% of rdg + 0.05 Ω) Below 1 mA of External Excitation Current: ± (0.015% of rdg + 0.01 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range, Steady or Pulsed/Intermittent: <410 Ω: 10.2 mA max 410 to 001 Ω: 1 mA max Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width
Weight:0.24 kg
Weight Note:0.24 kg (8.4 oz) (including batteries)
Width:69 mm
