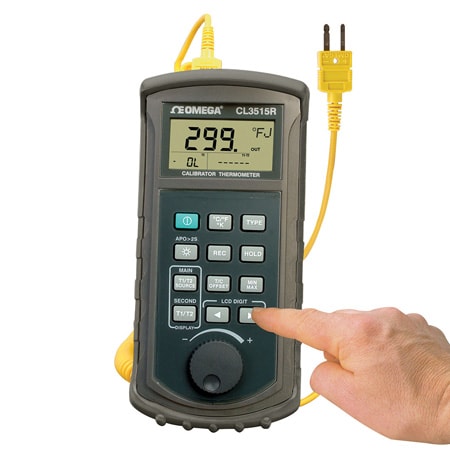

DwyerOmegaCL3515R-Series
CL3515R
Calibrator/Thermometer
- 가격
- 772,840 원
- VAT 10%
- 77,284 원
- 총 금액
- 850,124 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 13 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Accuracy Detail:± (0.05% of reading + 0.5 °C)
Additional Features 1:NIST Calibration Certificate
Battery life:17 hr
Display Type:LCD
Display Type Note:4-digit LCD with maxreading of 19999
Electrical Connection:Miniature Female Thermocouple Connector
Height:192 mm
Length:52.5 mm
Milli Volt Accuracy:± 0.025% + 1 digit
Milli Volt Resolution:10 µV
Millivolt Range:-25 to 75 mV
Number of Channels:2
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Relative Humidity, Max:0.7
Relative Humidity, Min:0%
Storage Temperature Note:-20 to 60°C (-4 to 140°F ),<70%RH
Storage Temperature, Max:60 °C
Storage Temperature, Min:-20 °C
Supply Voltage:9 Vdc
Temperature Coefficient:0.1 times the applicable accuracy specification per °C from 0 to 18°C and 28 to 50°C (32 to 64°F and 82 to 122°F)
Temperature Measurement, Max:2316 °C
Temperature Measurement, Min:0 °C
Thermocouple Simulation Resolution Range:Thermocouple Simulation Range: Resolution: 0.1° (1° for R/S/B/C); Accuracy*: ± (0.3°C + 10 µV)
Thermocouple Type:J, K, T, E, R, S, B, C, N, L, U
Type of RTD Signal:None
Weight:320 g
Width:91 mm
문서 및 매뉴얼
