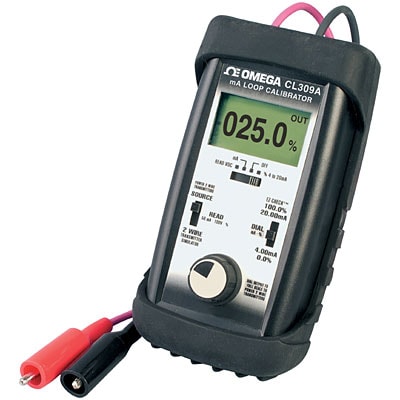

DwyerOmegaCL309A-Calibrator

CL309A

MA LOOP CALIBRATOR

가격: 2,021,340 원

VAT 10%: 202,134 원

총 금액: 2,223,474 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

2-Wire Transmitter Simulate:Voltage Burden (2-Wire Transmitter): 2 V at 20 mA; Overload/Current Limit Protection (2-Wire Transmitter): 24 mA; Loop Voltage Limits (2-Wire Transmitter): 2 to 100 Vdc (fuse-less protected from reverse polarity connections); Battery Life (2-Wire Transmitter): 125 hr

Battery Size and Type:Alkaline AA

Battery life:30 hr

Display Type:LCD

Height:4.06 cm

Length:14.3 cm

Loop Supply Limits:Compliance Voltage: 24 Vdc @ 20 mA; Drive Capability: 1200 Ω at 20 mA for 15 hours nominal

Measurement Accuracy Note:Accuracy (Source): EZ check(s) at 4 and 20 mA(*) ±0.025% at 4.00 mA and 20.00 mA (±0.005 mA) 0.0 to 24.00 mA ±0.05% of 24.00 mA (±0.01 mA); Accuracy (Read mA): Accuracy: Below 24.01 mV: ±0.05% of 24.00 mA (±0.01 mA) Above 24.00 mV: ±0.05% of 52.00 mA (± 0.02 mA); Accuracy (Voltage Read): ± 0.05% of FS; Temperature Effect (Voltage Read): ±100 ppm/°C of FS

Measuring Range:Ranges and Resolution (Source): 0.00 to 24.00 mA full span or -25.0 to 125.0% of 4 to 20 mA; Current (Read mA): 4 to 20 mA; Current Note: 0.00 to 52.00 mA full span OR -25.0 to 300.0% of 4 to 20 mA; Voltage Burden (Read mA): 2V at 50 mA; Battery Life (Read mA): 125 hr; Ranges (Voltage Read): -99.99 to 99.99 Vdc full span (FS); Input Resistance (Voltage Read): >2 MΩ; Battery Life (Voltage Read): >125 hr

Miscellaneous:Low battery indication with nominal 1 hour of operation left; over-voltage protection to 135 vrms (rated for 30 seconds) or 240 vrms (rated for 15 seconds); high contrast graphic liquid crystal display with 10.5 mm (0.413") high digits

Noise:± 0.005 mA of reading

Operating Temperature, Max:60 °C

Operating Temperature, Min:-20 °C

Overcurrent Protection:24 mA DC

Relative Humidity:10% ≤RH ≤90% (0 to 35°C), non-condensing,10% ≤RH ≤70% (35 to 60°C), non-condensing

Storage Temperature, Max:60 °C

Storage Temperature, Min:-30 °C

Supply Power Note:4 “AA” alkaline (included) 1.5V (Duracell MN1500 or equivalent); optional 120 Vac 50/60 Hz AC adaptor available; NiMh rechargeable battery kit available

Temperature Effect:± 0.005%/°C of FS (*) These are internal calibrated cardinal reference points and source/power and measure 2-wire transmitter

Weight:12.1 oz

Width:7.62 cm
