DwyerOmegaModel-CDSN
CDSN

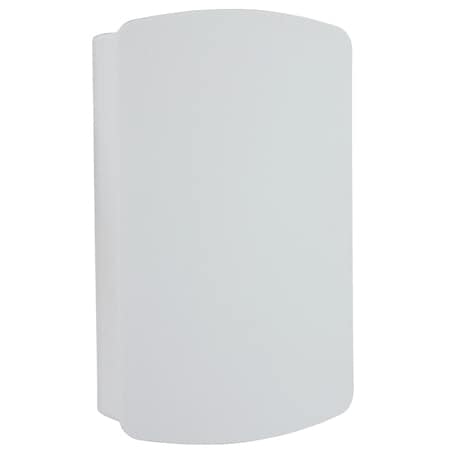

CDSN CARBON DIOXIDE XMTR W/TEM
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:HVAC
Carbon Dioxide Accuracy:± 40 PPM + 3% rdg
Carbon Dioxide Concentration, Max:2000 ppm
Carbon Dioxide Concentration, Min:0 ppm
Carbon Dioxide Response Time:120 s (τ90)
Compliance:CE
Display Type:N/A
Electrical Connection:Screw Terminal
Electrical Output:0 to 20 mA
Enclosure Ratings:IP30, NEMA Type 1
Materials:ABS
Measurement Type:Carbon Dioxide
Mounting Orientation:N/A
Operating Temperature, Max:122 °F
Operating Temperature, Min:32 °F
Output Detail:Field selectable; Current: 4-20 mA or 0-20 mA; Voltage: 0-5 V, 1-5 V, 0-10 V, or 2-10 V
Output Signal:Current, Voltage
Relative Humidity:0 to 85% RH Non-Condensing
Sensor Life:15 Years
Sensor Type:NDIR
Storage Temperature, Max:158 °F
Storage Temperature, Min:-22 °F
Supply Power Note:± 20%, 50/60 Hz
Supply Power Type:AC/DC
Supply Voltage:24 Vac/Vdc
Switch Type:N/A
Temperature Accuracy:± 1 °C
Temperature Output Range:N/A
Voltage Output Range:0 to 5 V, 1 to 5 V, 0 to 10 V, 2 to 10 V
Warm Up Time:<2 mins Operational; 10 mins Max Accuracy
