DwyerOmegaCDE440-Series
CDE-440-1
- 가격
- 1,268,020 원
- VAT 10%
- 126,802 원
- 총 금액
- 1,394,822 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Anti-Corrosion Treatment: Finished with electrostatic epoxy paint
Cell Constant:1
Conductivity:1 μS/cm to 2 S/cm
Conductivity Measurement:0.1 to 100000 μS
Conductivity Measurement Note:0.1 µS to 100 mS, K = 1, 0 to 130°C (32 to 266°F), 10 kg/cm^2
Construction Type:Standard
Data Interface:RS485 Modbus
Display Mode:Continuous, average or hold

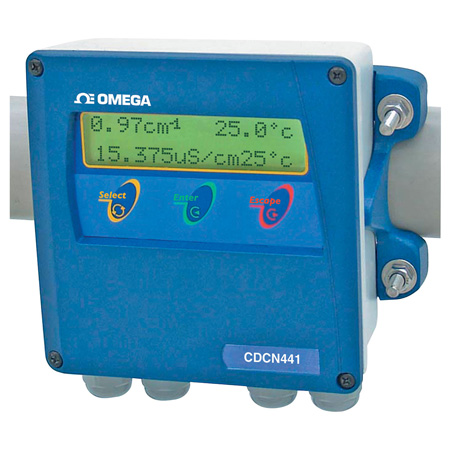

Display Type:2 lines with 16 characters LCD
Electrical Output:6 Outputs (4-20 mA, 2 Normaly open Relay)
Enclosure Ratings:IP68, NEMA Type 4
Frequency:50/60Hz
Galvanic Isolation:2000 Vac
Housing Material:Aluminum, ABS
Impedance:600 Ω
Insertion Length:60 mm
Measurement Type:Conductivity
Operating Temperature, Max:40 °C
Operating Temperature, Min:5 °C
Output Detail:2 N.O. (1A/240 Vac) on/off alarm or PWM; 4 to 20 mA for PID control or retransmission
Power Consumption:3.5 VA
Process Connection Material:316 Stainless Steel
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Process Temperature Note:Automatic or Manual Temperature Compensation: 0 to 100°C (32 to 212°F) Temperature Compensation: NTC-R typical 5 Ω at 25°C (77°F
Process Temperature, Max:130 °C
Process Temperature, Min:0 °C
Resistance:10 MΩ
Resolution:0.1 or 0.01
Supply Voltage:90 to 240 Vac
Weight:1.3 kg
