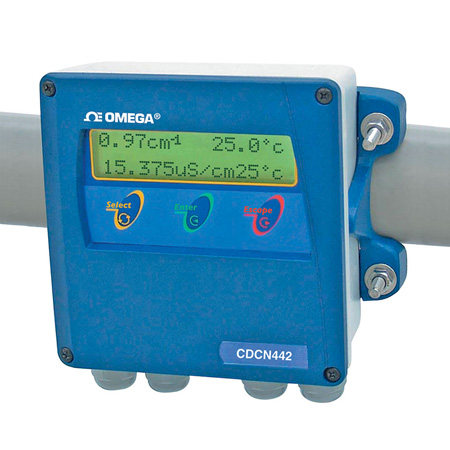

DwyerOmegaCDCN442-Controller
CDCN442
Toroidal Conductivity or Concentration Analyzer
- 가격
- 2,083,060 원
- VAT 10%
- 208,306 원
- 총 금액
- 2,291,366 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Cell Constant:0.01, 0.1, 1 or 5/10 cm-1
Conductivity Measurement:10 mS/cm to 1 S/cm
Data Interface:RS485
Display Type:2 x 16 Digit LCD
Electrical Output:4 to 20 mA
Enclosure Ratings:IP68, NEMA Type 4X
Frequency:50/60 Hz
Impedance:600 Ω
Materials:ABS, Aluminum
Number of Relays:2
Operating Temperature, Max:40 °C
Operating Temperature, Min:5 °C
Output Detail:4 to 20 mA (2), recorder output, Control Output (4 to 20mA): can be programmed as P + I + D Control Optical Galvanic Isolation: 2000 Vac
Power Consumption:3.5 VA
Process Temperature, Max:0 °C
Process Temperature, Min:130 °C
Relay Note:On/Off Alarm Outputs (2): NO (1A / 240 Vac)
Relay Output:On/Off Alarm Output
Resistivity Measurement Range:10 MΩ/cm to infinity
Resolution:0.1 or 0.01
Supply Voltage:90 to 240 Vac
Weight:1.3 kg
