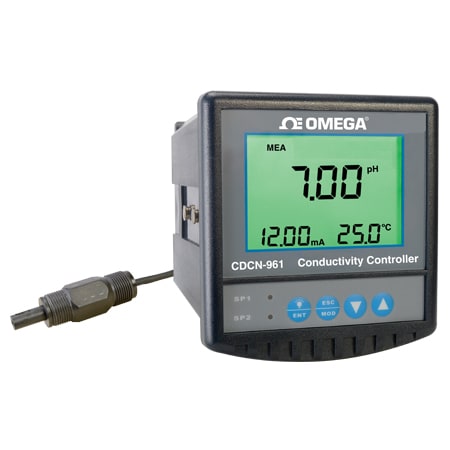

DwyerOmegaCDCN-961-Controller
CDCN-961
Conductivity, Resistivity or TDS Controller
- 가격
- 2,773,540 원
- VAT 10%
- 277,354 원
- 총 금액
- 3,050,894 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Cable Length:5 m
Calibration Note:Line Resistance Compensation: 0.0 to 20.0 Ω
Cell Constant:K = 0.01, 0.1, 1, 10, Conductivity Electrode: K=1.0
Conductivity Measurement:0.000 to 3.000, 30.00, 300.0 μS/cm
Cutout Dimensions:93.5 x 93.5 mm
Data Interface:RS485
Diameter:136 mm
Display Type:LCD
EMC Standard:EN 50081-1, EN 50082-1
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 4X
Frequency:1 to 999 hours 1 to 999 seconds(Frequency of Cleaning Time)
Height:108 mm
Impedance:600 Ω
Materials:Graphite
Measurement Range Note:Conductivity: 0.000 to 3.000, 30.00, 300.0 μS/cm Resistivity: 0.3 to 30.0 MΩcm TDS: 0.000 to 3.000, 30.00, 300.0 ppm, Test Range: 0 to 50.0 mS/cm
Number of Relays:3
Operating Humidity:10 to 95% RH
Operating Temperature, Max:50 °C
Operating Temperature, Min:-10 °C
Output Detail:4 to 20 mA/600 Ω
Process Temperature, Max:-0.5 °C
Process Temperature, Min:130 °C
Relay Note:3 SPST/250V 1A, Control Hysteresis Band: 0.1 to 10% FS
Relay Output:SPST
Resistivity Measurement Range:0.3 to 30.0 MΩcm
Resolution:0.001/0.01/0.1 μS/cm
Supply Voltage:220 Vac
Temperature Accuracy:± 0.5 °C
Temperature Resolution:0.1 °C
Temperature Sensor Type:1000 Ω RTD
Weight:1650 g
Width:100 mm
