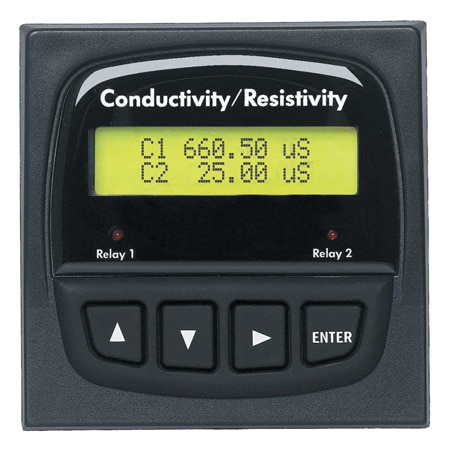

DwyerOmegaCDCN91-Controller
CDCN-91AC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 2 %
Additional Features 1:Dual Channel; NEMA 4X (IP65) front and back with optional NEMA 4X (IP65) rear cover kit
Conductivity Measurement:0.055 to 400,000 µS/cm
Display Type:2 x 16 Alphanumeric LCD
Display Type Note:Alphanumeric 2 x 16 LCD Contrast: User selected, 5 levels Update rate: 1.5 seconds
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 4X
Frequency:50/60 Hz
Materials:PBT, Polycarbonate
Number of Relays:None
Operating Range Note:Resistivity: 10 kΩ/cm to 18.26 MΩ/cm (0.055 to 100 μS/cm); TDS: 0.001 to 999999 ppm or ppb (display limit)
Operating Temperature, Max:120 °C
Operating Temperature, Min:-25 °C
Output Detail:Current Outputs: (3 each) 4 to 20 mA, isolated, fully adjustable and reversible Max Loop Impedance: 150 Ω @ 12V, 450 Ω @ 18V, 750 Ω @ 24V Update Rate: Approx. 100 mS Accuracy: ±0.03 mA @ 25°C, 24 Vdc Open Collector Outputs: (2 each) Isolated, 50 mA sink or source, 30 Vdc max pull-up voltage Operational Settings: Hi, Lo, USP, Pulse, Off Hysteresis: User adjustable Time Delay: 0 to 6400 seconds Maximum Pulse Rate: 400 pulses/minute
Power Consumption:20 VA
Relay Note:(up to 4 each) SPDT Relays Maximum Voltage Ratings: 5A @ 30 Vdc or 5A @ 250 Vac Operational Settings: Hi, Lo, USP, Pulse, Off Hysteresis: User adjustable Time Delay: 0 to 6400 seconds Maximum Pulse Rate: 400 pulses/minute
Relay Output:SPDT Relays
Resistivity Measurement Range:10 kΩ/cm to 18.26 MΩ/cm
Supply Voltage:100 to 240 Vac, 11 to 24 Vdc
Temperature Accuracy:± 0.5 °C
Weight:581 g
