DwyerOmegaCCT-Series-Sig-Cond

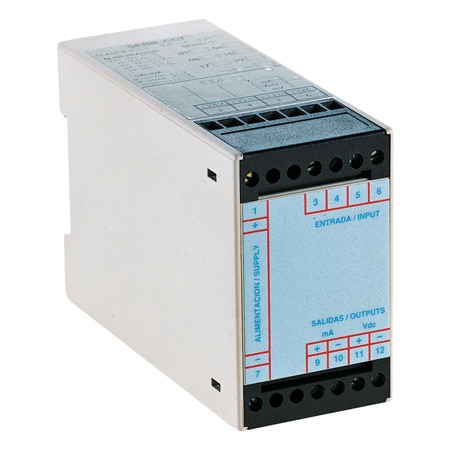

CCT-55-V
Economical DIN Rail Signal Conditioners
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 %
Approvals:CE, UL
Approvals Note:Enclosure: UL 94 V-1, Terminal Housing: UL 94-2
Bandwidth:1.5 Hz (-3 dB)
Current Measurement Range:N/A
Enclosure Ratings:IP20, IP40
Frequency Measurement Range:N/A
Height:75 mm
Input Type:Voltage
Isolation:2000 Vrms
Length:110 mm
Materials:Polycarbonate, RAL 7032
Mounting:DIN Rail 46277 and EN 50022
Number of Inputs:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:-10 °C
Output Detail:15 Vdc @ 5 mA source or 100 mA sink with 24 Vdc external supply Output Ranges: 1 pulse/hr to 10,000 pulses/sec full scale; jumper select and poteniometer adjustment
Output Ripple:≤0.5%
Output Signal:Voltage
Output Value:Process
Power Consumption:max 1.5 VA
Pulse Rates:50% or fixed 100 ms
Response Time:≤250 ms
Serial Number:Break Protection: Jumper selectable, upscale (>20 mA) or downscale (<4 mA)
Storage Temperature, Max:80 °C
Storage Temperature, Min:-30 °C
Supply Power Note:110 Vac (standard); 220 Vac or 24 Vdc (optional) (±10% tolerance on all power supplies)
Supply Power Type:AC
Supply Voltage:110 Vac
Temperature Coefficient:≤0.015%/°C
Temperature Measurement Range:N/A
Voltage Measurement Range:0 to 0.1 Vdc, 0 to 1 Vdc, 0 to 10 Vdc, 0 to 100 Vdc, 0 to 650 Vdc
Voltage Output Range:15 Vdc
Weight:270 g
Width:45 mm
Wire Gauge:14 AWG
