DwyerOmegaSeries-BTO
BTO56071

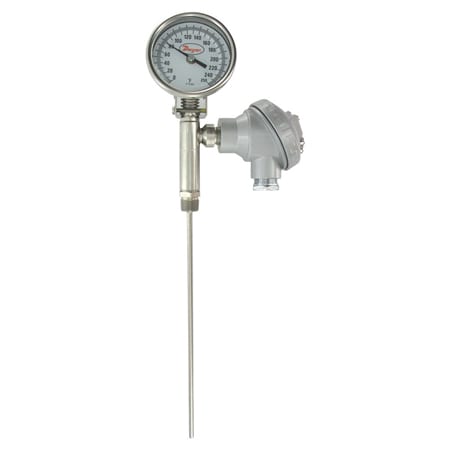

BTO56071 5" THEM 50-550F 6"
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 16 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 1 %
Applications:Boilers, Industrial and Manufacturing, Oil
Current Output:4 to 20 mA
Dial Dia:5 in
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP66, NEMA Type 4X
Loop Resistance:1045 Ω
Materials:304 SS, Lens:Glass
Materials, Wetted:304 Stainless Steel
Measurement Type:Temperature
Operating Temperature, Max:185 °F
Operating Temperature, Min:-58 °F
Output Signal:Current
Power Consumption:38 mA
Process Connection Size:1/2 in
Process Connection Type:NPT Male
Process Temperature, Max:550 °F
Process Temperature, Min:50 °F
Resolution:5 °F
Stem Length:6 in
Supply Power Type:DC
Supply Voltage:10 to 33 Vdc
Weight:884.5 g
