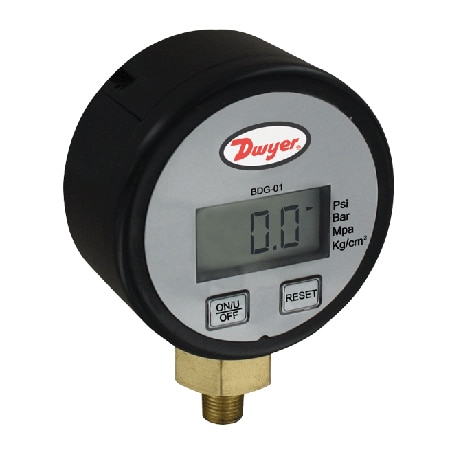

DwyerOmegaModel-BDG-01
BDG-01
BDG-01 BRASS DGTL GUAGE
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 23 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.5 %
Accuracy Detail:± 0.5% FS;± 1% FS for 5000 psig (344.74 bar) range
Battery Size and Type:CR123A, 3V Li-ion
Burst Pressure:450 psi Maximum
Dial Dia:2.5 in
Display Note:4-digit LCD (1-1/4 x 5/8˝)
Display Type:LCD
Enclosure Ratings:IP10
Long Term Stability:± 0.05% FS/year
Materials:ABS
Materials, Wetted:Brass, Silicone
Measurement Pressure Type:Gauge
Measurement Pressure, Max:150 psi
Measurement Pressure, Min:0 psi
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Number of Digits:4
Operating Temperature, Max:140 °F
Operating Temperature, Min:14 °F
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Proof Pressure:Up to 300 psi
Supply Power Note:3 V CR123A lithium metal battery, installed functional, user replaceable, Battery Life: 2 to 3 years
Supply Power Type:Battery
Thermal Effect:± 0.04%/°C.
Weight:0.29 lb
