DwyerOmegaBB701-series
BB701

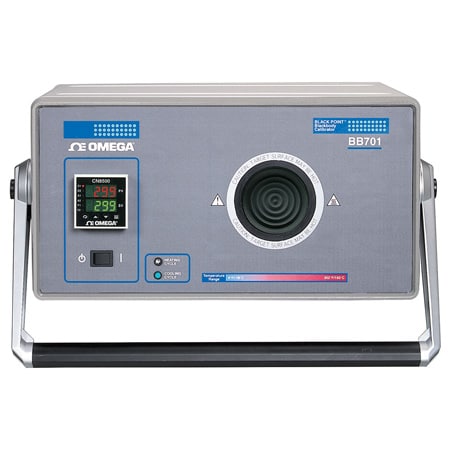

Infrared Calibrator: Hot/Cold Blackbody Calibration Source
- 가격
- 9,792,390 원
- VAT 10%
- 979,239 원
- 총 금액
- 10,771,629 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.8 °C (± 1.44 °F)
Accuracy Detail:±0.8°C +1 digit (±1.4°F ) (worst case), ±0.3°C (±0.6°F) [over entire scale]
Additional Features 1:Portable
Calibration Reference Sensor:Platinum RTD, 100 Ω, 0.00385
Cavity Emissivity:0.95
Control Mode:PID Control
Cool-Down Time:5 m
Cool-Down Time Note:5 min, from ambient to -18°C (0°F)
Data Interface:RS232
Display Type:LED
Frequency:50/60 Hz
Height:19.5 mm
Installation Category:II
Internal Sensing Element:Platinum RTD, 100 Ω, 0.00385
Length:36.5 mm
Operating Temperature Note:4.4 to 29.4°C (40 to 85°F) [target plate reaches 0°F]; 4.4 to 43°C (40 to 110°F) [target plate reaches 11.8°F]
Operating Temperature, Max:43 °C
Operating Temperature, Min:4.4 °C
Power Consumption:175 W
Process Temperature, Max:149 °C
Process Temperature, Min:-18 °C
RTD Accuracy:± 0.375 °C
Stability:± 0.6°C
Stability Note:± 0.6°C (± 1.2°F) or less
Supply Voltage:115 Vac
Target Size:63.5
Warm Up Time:5 min
Warm-Up Time Note:5 min, from ambient to 149°C (300°F)
Weight:12.7 kg
Width:35.5 mm
