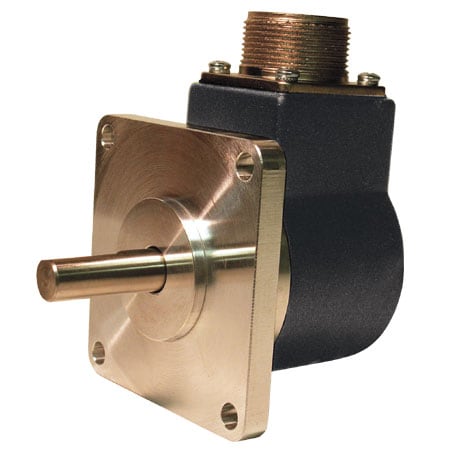

DwyerOmegaZDH-Series

AU-ZDH1000H

NPN Output, 8000 RPM

가격: 900,160 원

VAT 10%: 90,016 원

총 금액: 990,176 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Accuracy:0.017°

Actuator Torque:21.18 N-m

Electrical Connection:7-pin MS type (MIL-C-5015)

EMC Standard:DDENV 50141, DDENV 50204, EN 50081-2, EN 55022, EN 61000- 4-2, EN 61000-4-4, EN 61000-6-2

Enclosure:Black Non-Corrosive Finish

Fits Shaft Diameter:9.5 mm

Flange Size:2 in

Frequency:Up to 1 MHz

Humidity Range:98% RH Non-condensing

Input Voltage Note:100 mVp-p at 0 to 100 KHz

Number of Channels:4

Operating Environment:Rotor Intertia: 3.66 x 10-3 N-mmsec² (5.2 x 10-4 oz-in-sec² ), Symmetry: 1 to 6000 CPR: 180° (±18°) electrical at 100 KHz output, 6001 to 20,480 CPR: 180° (±36°) electrical; Quad Phasing: 1 to 6000 CPR: 90° (±22.5°) electrical , 6001 to 20,480 CPR: 90° (±36°) electrical; Edge Separation; 1 to 6000 CPR: 67.5° electrical at 100 KHz output, 6001 to 20,480 CPR: 54° electrical, >20,480 CPR: 50° electrical

Operating Temperature, Max:70 °C

Operating Temperature, Min:0 °C

Output Detail:NPN open collector transistor. Positive pulse once per revolution, centered over output channel A

Output Signal:NPN Open Collector

Permissible Load:80 lbs. maximum rated load of 20 to 40 lbs. for bearing life of 1.5 x 109 revolutions

Resolution:1000 ppr

Response Time:< 1 microsecond

Series ID:ZDH-Series

Shock:75 g @ 11 msec duration

Storage Temperature, Max:85 °C

Storage Temperature, Min:-25 °C

Supply Current:100 mA

Supply Voltage:4.75 to 28 Vdc

Weight:311.8 g
