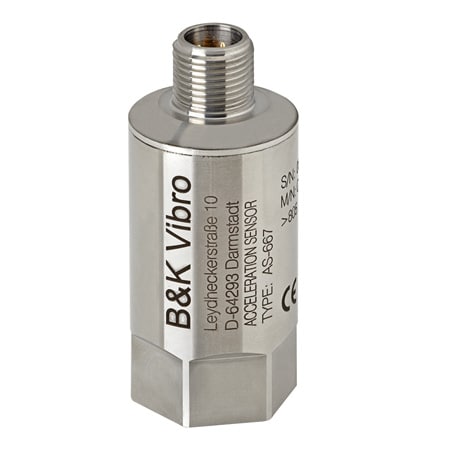

DwyerOmegaAS-667-Series
AS-667
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Piezoelectric Principle, Compression type
Applications:Assembly Line, Casing Vibration, Compressor Control, Power Generation, Power Plants & Boilers, Pump Control, Shaft Vibrations
Connector Style:Top
Electrical Output:27 V
Enclosure Material:Stainless Steel
Enclosure Ratings:IP66, IP67
Frequency Input Range:0.5 Hz to 13 kHz
Frequency Note:0.5 Hz to 13 kHz (± 3dB)
Ground:Isolated Case
Linearity Error:< 1 %
Measuring Range:±60 g
Mounting:M8 Tapped Hole
Mounting Note:3,5 Nm, width across flats: 22 mm
Mounting Torque:3.5 Nm
Natural frequency:30 kHz
Operating Temperature, Max:125 °C
Operating Temperature, Min:-55 °C
Output Detail:Voltage across entire temperature range: 12.4 Vdc to 13.4 Vdc
Output Resistance:100 Ω
Overload Capacity:5000 g peak
Sensitivity Note:Cross Sensitivity: 5%
Sensitivity Range:100 mV/g ±10 %
Sensor Type:Compression Type
Storage Temperature, Max:70 °C
Storage Temperature, Min:-20 °C
Supply Current:2 mA to 10 mA
Weight:120 g
