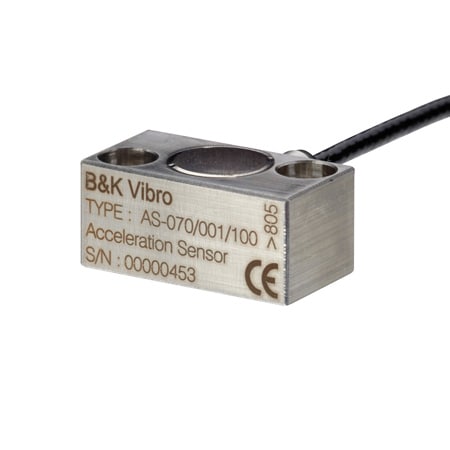

DwyerOmegaAS-070-Series

AS-070/001/050

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 17 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Additional Features 1:Ultra Compact

Applications:Assembly Line, Casing Vibration, Compressor Control, Power Generation, Power Plants & Boilers, Pump Control, Shaft Vibrations

Cable Diameter:3.3 mm

Cable Length:10 m

Connector Style:Lateral

Cross-Section Area:0.14 mm²

Differential Voltage, Max:+ 8 V to + 12 V

EMC Standard:Directive 2004/108/EC, en_61000_4_3, EN 61000-4-6, EN 61326-1

Enclosure Material:Stainless Steel

Enclosure Ratings:IP67

Frequency Input Range:0.32 Hz to 10 kHz

Frequency Note:0.32 Hz to 10 kHz (± 3 dB)

Insulation:ETFE

Insulation Color:Black

Insulation Resistance:≥ 20 MΩ

Isolation:100 µg/√Hz_x000D_ 3 µg/√Hz

Linearity Error:≤ 1 %

Measuring Range:±50 g

Mounting:M4 DIN 912

Mounting Note:2 Allan screws M4 DIN 912

Mounting Torque:3 Nm

Natural frequency:> 25 kHz

Noise Level Range:at 1Hz: > 100 Hz

Operating Temperature, Max:120 °C

Operating Temperature, Min:-50 °C

Output Resistance:<100 Ω

Overload Capacity:5000 g peak

Polarity:Negative

Sensitivity Note:Transverse Sensitivity, Max: ≤ 7 %, Magnetic Field Sensitivity: < 0.005 g/m T,Strain Sensitivity: < 0.02 g/ ( µm/m )

Sensitivity Range:N/A

Sensor Type:Shear Type (ring), Piezo-electric

Storage Temperature, Max:70 °C

Storage Temperature, Min:-20 °C

Supply Current:4 mA (2 mA to 10 mA)

Supply Power Note:+ 24 V (+ 18 V to + 28 V)

Supply Voltage:24 Vdc

Temperature Stability:< 0.2 % K

Weight:80 g
