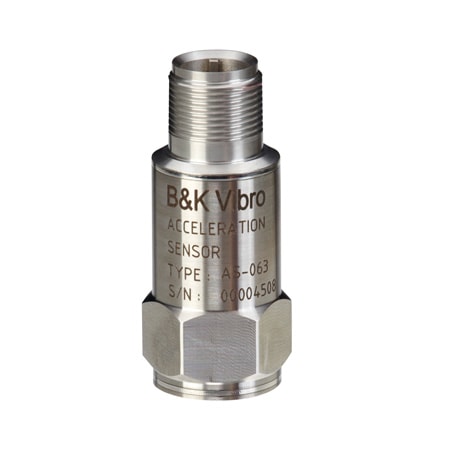

DwyerOmegaAS-063-Series

AS-063

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Additional Features 1:Mountable cable

Applications:Assembly Line, Power Generation, Power Plants & Boilers

Approvals:Marking: II 1 G Ex ia IIC T6 Ga or II 2 D Ex ia IIIC T145 °C Db

Connector Style:Top

Differential Voltage, Max:+12.5 V, ± 1.5 V

EMC Standard:EN 61326-1

Enclosure Material:Stainless Steel

Enclosure Ratings:IP66, IP77

Frequency Input Range:1.5 Hz to 13 kHz

Frequency Note:1.5 Hz to 13 kHz (± 3 dB)

Insulation Resistance:≥ 20 MΩ

Measuring Range:±80 g

Mounting:M8 x 14 or M8 x 1/4“ 28 UNF

Mounting Note:Threaded stud M8 x 14 / Threaded stud M8 / 1/4“ 28 UNF

Mounting Torque:3.5 Nm

Natural frequency:35kHz ± 3 kHz

Operating Temperature, Max:125 °C

Operating Temperature, Min:-55 °C

Output Resistance:≤ 300 Ω

Overload Capacity:5000 g peak

Polarity:Positive

Sensitivity Note:Transverse Sensitivity Max: ≤ 8 to 10 %, Magnetic Field Sensitivity: <80 Hz: 0,001 g/mT ; <1 kHz: 0,014 g/mT, Strain Sensitivity: < 0.002 g/( µm/m ), Sensitivity Accuracy: ± 5 %

Sensitivity Range:N/A

Sensor Type:Compression Type

Storage Temperature, Max:70 °C

Storage Temperature, Min:-20 °C

Supply Current:4 mA (2 mA to 10 mA)

Supply Power Note:+ 24 V (+ 18 V to + 30 V) DC polarised

Supply Voltage:24 Vdc

Weight:130 g
