DwyerOmegaSeries-APS-AVS
APS-150

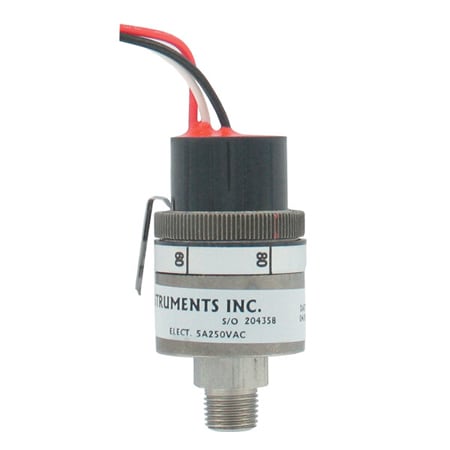

Adjustable pressure switch, set point range 0.8-28.5 psi (.06-2.0 bar) increasing, 1.6-30.0 psi (.11-2.1 bar) decreasing, ± 0.6 psi (.04 bar) repeatability, 0.8-1.3 psi (.06-.09 bar) deadband.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Industrial and Manufacturing, Pump Control
Compliance:UR
Cycling:< 20 cycles/min
Deadband:0.8 to 1.3 psi
Decreasing Pressure, Max:28.5 psi
Decreasing Pressure, Min:0.8 psi
Increasing Pressure, Max:30 psi
Increasing Pressure, Min:1.6 psi
Materials, Wetted:17-7 PH Stainless Steel, 300 Stainless Steel
Measurement Pressure Type:Gauge
Media Compatibility:Consult Factory
Operating Temperature, Max:225 °F
Operating Temperature, Min:-65 °F
Pressure Limits:150%
Process Connection Size:1/8 in
Process Connection Type:NPT Male
Repeatability:± 0.6 psi
Sensing Element:Capsule
Set Point Adjustment:Field Adjustable
Switch Rating:5 A @ 250 Vac, 3 A @ 28 Vac
Switch Type:SPDT Snap
Weight:3 oz
Wire Gauge:20 AWG
