DwyerOmegaSeries-AP
AP-7021-153-33

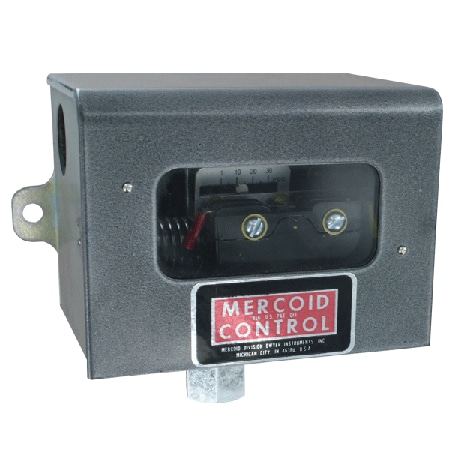

Diaphragm operated pressure switch, range 10" vac-50" w.c. (2.5-12.4 kPa), SPDT snap switch, low deadband 8" w.c. (2.0 kPa), high deadband 10" w.c. (2.49 kPa), max. pressure 15 psig (1.03 bar)
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:FM, UL
Deadband:8 to 10 inH2O
Electrical Connection:1/2 in NPS female Conduit with Screw Terminal block
Enclosure Ratings:None
Materials, Wetted:Buna-N (NBR), Steel
Measurement Pressure Type:Vacuum
Measurement Pressure, Max:50 inH₂O
Measurement Pressure, Min:-10 inH₂O
Mounting Orientation:Not Position Sensitive
Operating Temperature, Max:150 °F
Operating Temperature, Min:-30 °F
Pressure Limits:Up to 15 psi
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Set Point Adjustment:External Screw
Switch Rating:15 A @ 120 ac, 8 A @ 240 Vac, 0.5 A @ 120 Vdc, 0.25 A @ 240 Vdc
Switch Type:SPDT Snap
Weight:2 lb
