DwyerOmegaAM-2250TX-Transmitter

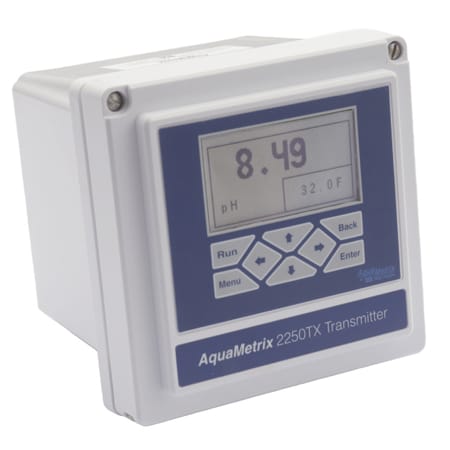

AM-2250TX
Multi-Variable pH, ORP, Conductivity, & Flow Loop Powered Transmitter
- 가격
- 1,394,350 원
- VAT 10%
- 139,435 원
- 총 금액
- 1,533,785 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:pH, ORP, Conductivity, Flow. Wall or Panel Mounting
Applications:Boilers, Chemicals, Cooling Towers, Food and Beverage, Fume scrubbers, Industrial and Manufacturing, Mining, Pulp & Paper, Waste Management
Approvals:ETL (US and Canada) and CE pending
Calibration Note:pH Calibration Modes: Automatic or Manual 2 or 3 points ORP Calibration Modes: Manual 1 point Conductivity Calibration Modes: Up to 16 points Flow Calibration Modes: K-factor input
Conductivity Measurement:0.055 to 500,000 µS/cm
Electrical Output:4 to 20 mA
Enclosure Ratings:NEMA Type 4X
Flow Indication Note:0 to 999 in any units
Front Cover Height:5.5 in
Front Cover Width:5.5 in
Height:5.4 in
Input Range Note:pH Sensor Input: -600 to +600 mV ORP Sensor Input: -999 to +999 mV Conductivity Sensor Input: 0 to 9999 Ω Flow Sensor Input: 0 to 2000 Hz
Length:5 in
Load Resistance:800 Ω
Measurement Type:Conductivity, pH, ORP, Flow
Mounting:Wall mount, panel mount with kit provided. DIN rail and pipe mount with optional kit
ORP Measurement Range:-1000 to +1000 mV
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Output Detail:One 4-20 mA output Scalable 4-20mA with PID (Process) Optically isolated.
PH Measurement Range:0 to 14.00 pH
Power Consumption:20 mA @ 24 Vdc
Relative Humidity:0 to 90% Relative Humidity, non-condensing
Sensor Note:PH Sensor 6-Wire Differential or Combination ORP Sensor 6-Wire Differential or Combination Conductivity Sensor 4-Wire contacting : Any cell constant between 0.01 and 100 Flow Sensor Pulse output: Paddle-wheel, PH Temerature elements Magmete 100, 1000 Ω, RTD 300, 3000 Ω NTC ORP Temerature Elements 100, 1000 Ω, RTD 300, 3000 Ω NTC Conductivity Temperature Elements 100, 1000 Ω, RTD 300, 3000 Ω NTC
Supply Voltage:16 to 32 Vdc
Temperature Compensation:pH : Automatic; ORP : Display temperature; Conductivity: Automatic or Manual -20 to 120 °C; Flow: Display Flow Totalizer
Temperature Range:pH range: -20 to 120 °C; ORP range: -20 to 120 °C; Conductivity range: -20 to 120 °C
Weight:2 lb
Width:5.4 in
