DwyerOmegaACC797-series

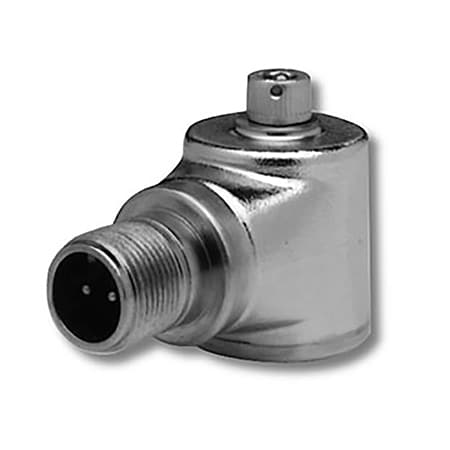

ACC797
- 가격
- 1,002,070 원
- VAT 10%
- 100,207 원
- 총 금액
- 1,102,277 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 14 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Premium Grade Low Profile
Bandwidth:±5%: 3 to 5000 Hz,±10%: 2 to 7000 Hz,±3 dB: 1 to 12,000 Hz
Electrical Output:12 Vdc
Enclosure Material:316L Stainless Steel
Ground:Isolated Case
Inrush Current:2 to 10 mA
Linearity Error:0.01
Mating Connector:Amphenol 97-3106A-10SL-4S type
Measuring Range:±50 g
Mounting:Screw
Natural frequency:26 kHz
Noise Calibration:Electrical Noise (Equiv. g, Nominal):Broadband: 2.5 Hz to 25 kHz: 600 µg,Spectral: 10 Hz: 8 µg/=Hz,100 Hz: 5 µg/=Hz,1000 Hz: 5 µg/=Hz
Operating Temperature, Max:120 °C
Operating Temperature, Min:-50 °C
Output Resistance:100 Ω
Overload Capacity:5000 g peak
Sensitivity Note:Transverse Sensitivity, Max: 5% of axial, Electromagnetic Sensitivity, Max: 30 µg/gauss, Strain Sensitivity: Max 0.0005 g/microstrain
Sensitivity Range:N/A
Supply Voltage:18 to 30 Vdc
Vibration:500 g peak
Weight:135 g
