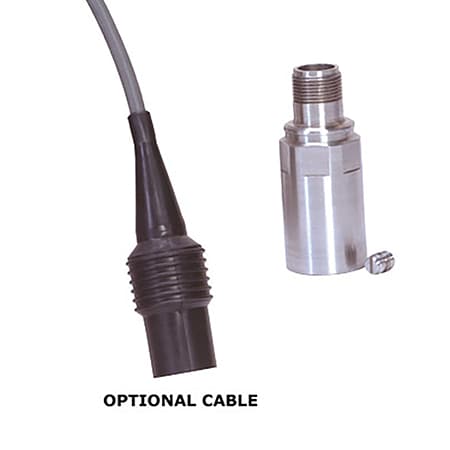

DwyerOmegaACC793-series

ACC793

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Additional Features 1:Premium Grade Top Mount

Approvals:FM: Class I, II, III, Division I, Groups A, B, C, D, E, F, G; Division II, Groups A, B, C, D, F, G_x000D_ CSA: Class I, Division I, Groups A, B, C, D

Bandwidth:±5%: 1.5 to 5000 Hz,±10%: 1.0 to 7000 Hz,±3 dB: 0.5 to 15,000 Hz

Electrical Output:12 Vdc

Enclosure Material:316L Stainless Steel

Ground:Isolated Case

Inrush Current:2 to 10 mA

Linearity Error:0.01

Mating Connector:Amphenol 97-3106A-10SL-4S type

Measuring Range:±80 g

Mounting:UNF Tapped Hole

Mounting Note:1/4-28 tapped hole

Natural frequency:25 kHz

Noise Calibration:Electrical Noise (Equiv. g, Nominal):,Broadband: 2.5 Hz to 25 kHz: 600 µg,Spectral: 10 Hz: 8 µg/=Hz,100 Hz: 5 µg/=Hz,1000 Hz: 5 µg/=Hz

Operating Temperature, Max:120 °C

Operating Temperature, Min:-50 °C

Output Resistance:100 Ω

Seal Options:Hermetic to 10^-8 cc/s

Sensitivity Note:Transverse Sensitivity, Max: 5% of axial, Strain Sensitivity: Max 0.0005 g/microstrain

Sensitivity Range:N/A

Supply Voltage:18 to 30 Vdc

Vibration:500 g peak

Weight:112 g
