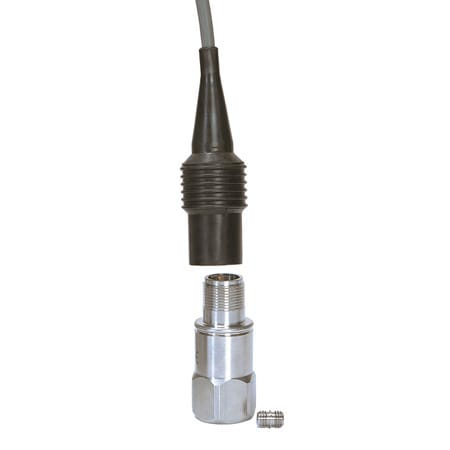

DwyerOmegaACC786A-series

ACC786A

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Additional Features 1:Top Mount Industrial Grade

Bandwidth:±5%: 3 to 5000 Hz,±10%: 1 to 9000 Hz,±3 dB: 0.5 to 14,000 Hz

Electrical Output:12 Vdc

Enclosure Material:316L Stainless Steel

Ground:Isolated Case

Inrush Current:2 to 10 mA

Linearity Error:0.01

Mating Connector:Amphenol 97-3106A-10SL-4S type

Measuring Range:±80 g

Mounting:UNF Tapped Hole

Mounting Note:1/4-28 UNF tapped hole

Natural frequency:30 kHz

Noise Calibration:Electrical Noise, Equiv. g:,Broadband: 2.5 Hz to 25 kHz: 700 µg,Spectral: 10 Hz: 10 µg√Hz,100 Hz: 5 µg√Hz,1000 Hz: 5 µg√Hz

Operating Temperature, Max:120 °C

Operating Temperature, Min:-50 °C

Output Resistance:100 Ω

Overload Capacity:5000 g peak

Seal Options:Hermetic

Sensitivity Note:Transverse Sensitivity, Max: 5% of axial, Electromagnetic Sensitivity, Max: 70 µg/gauss,Strain Sensitivity: Max 0.0002 g/microstrain

Sensitivity Range:N/A

Sensor Type:Shear Type (ring), Piezo-electric

Supply Voltage:18 to 30 Vdc

Vibration:500 g peak

Weight:90 g
