DwyerOmegaSeries-A1PS-A1VS
A1PS-14

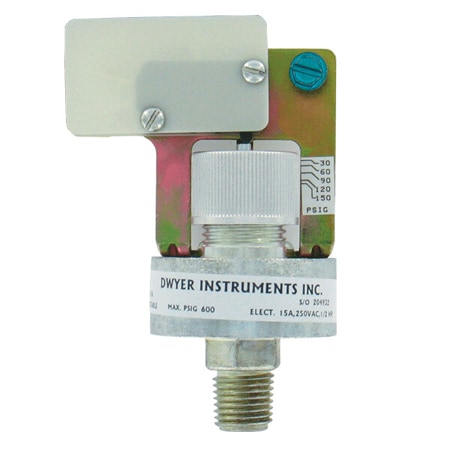

Economical pressure switch, set point range 1.5-3.5 psi (10-24 kPa), ± 0.15 psi (1 kPa) repeatability, 0.5-1.7 psi (3-11 kPa) deadband.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:UL
Cycling:< 60 cycles/min
Deadband:0.5 to 1.7 psi
Electrical Connection:Screw Terminal
Materials, Wetted:Buna-N (NBR), Zinc-Aluminum Alloy with Chromate Finish
Measurement Pressure Type:Gauge
Measurement Pressure, Max:3.5 psi
Measurement Pressure, Min:1.5 psi
Media Compatibility:Consult Factory
Operating Temperature, Max:185 °F
Operating Temperature, Min:-31 °F
Pressure Limits:Up to 600 psi
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Repeatability:± 0.15 psi
Sensing Element:Diaphragm
Set Point Adjustment:External Cap
Switch Note:15 A (resistive) @ 250 VAC, 1/2 HP @ 250 VAC
Switch Rating:15 A @ 250 Vac, 1/2 hp @ 250 Vac
Switch Type:SPDT Snap
Weight:7.4 oz
