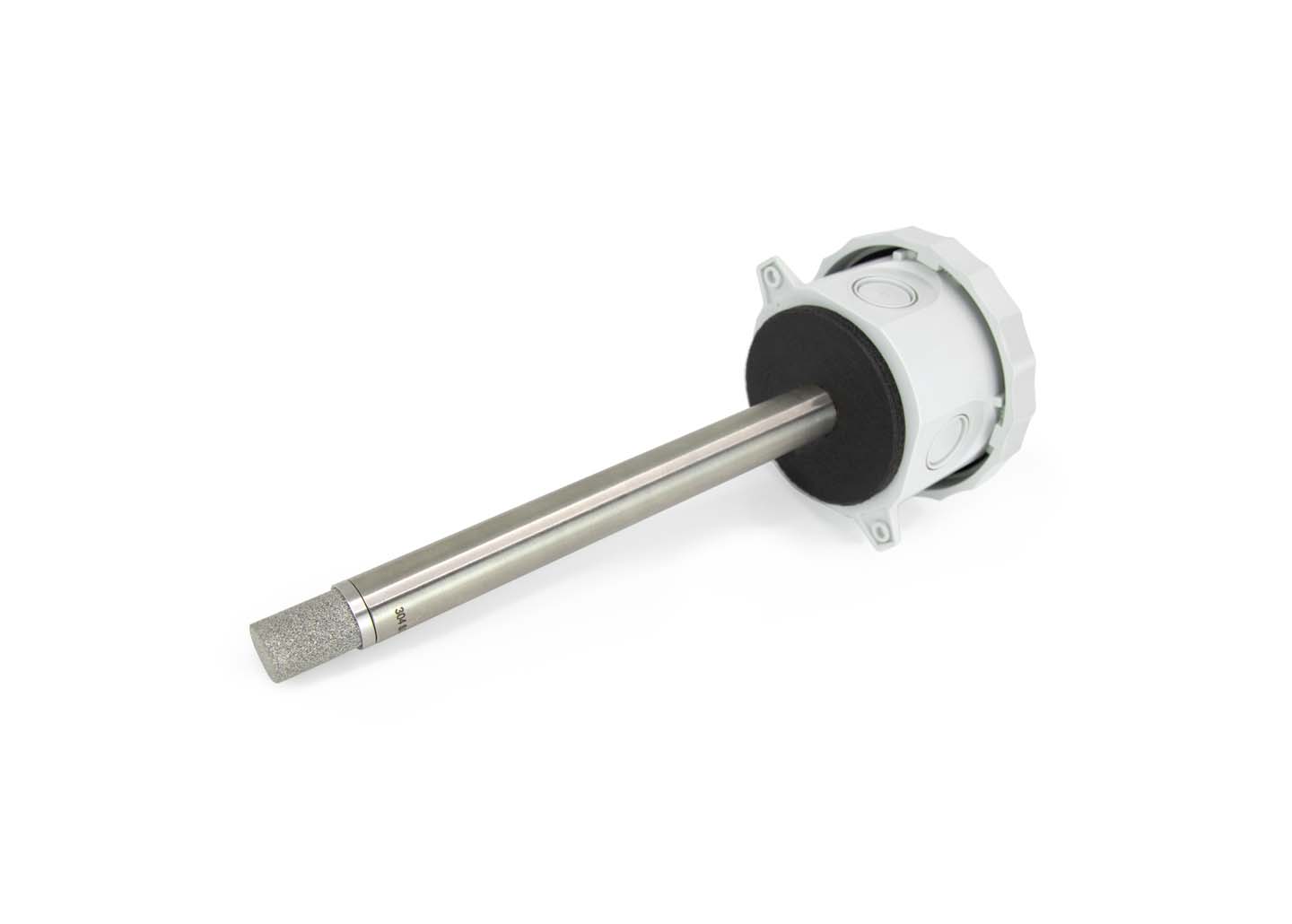

DwyerOmegaRH-Combo-Duct-Thermistor
A/RH3-1.8K-D
Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Duct, ± 3% Accuracy, 1,800 Ohm Thermistor, Euro Enclosure
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Applications:Air and HVAC, Building and Maintenance, Medical, Process Automation and Control
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Filter:Hydrophobic Filter
Current, Max:8 mA
Measurement Type:Humidity, Temperature
Mounting Orientation:Duct Mount
Operating Temperature, Max:60 °C
Operating Temperature, Min:-40 °C
Output Detail:0-5 VDC: 12 - 40 VDC / 18 - 28 VAC
Probe Diameter:0.75 in
Relative Humidity:10 to 95%
Relative Humidity Sensor Type:Capacitive with Hydrophobic Filter
Repeatability:0.5% RH,± 0.05°C
Response Time:20 Seconds Typical
Sensitivity:0.1% RH
Series ID:RH-Combo-Duct-Thermistor
Stability:RH Stability: Less than 2% drift / 5 years, Platinum RTD Sensor Stability: +/-0.03% after 1000 Hours @ 572°F (300°C)
Storage Temperature, Max:65 °C
Storage Temperature, Min:-40 °C
Supply Power Type:DC
Supply Voltage:24 Vdc
Tightening Torque:4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
Wire Gauge:26 to 16 AWG
