DwyerOmegaNickel-Room

A/1K-NI-R2-RJ6

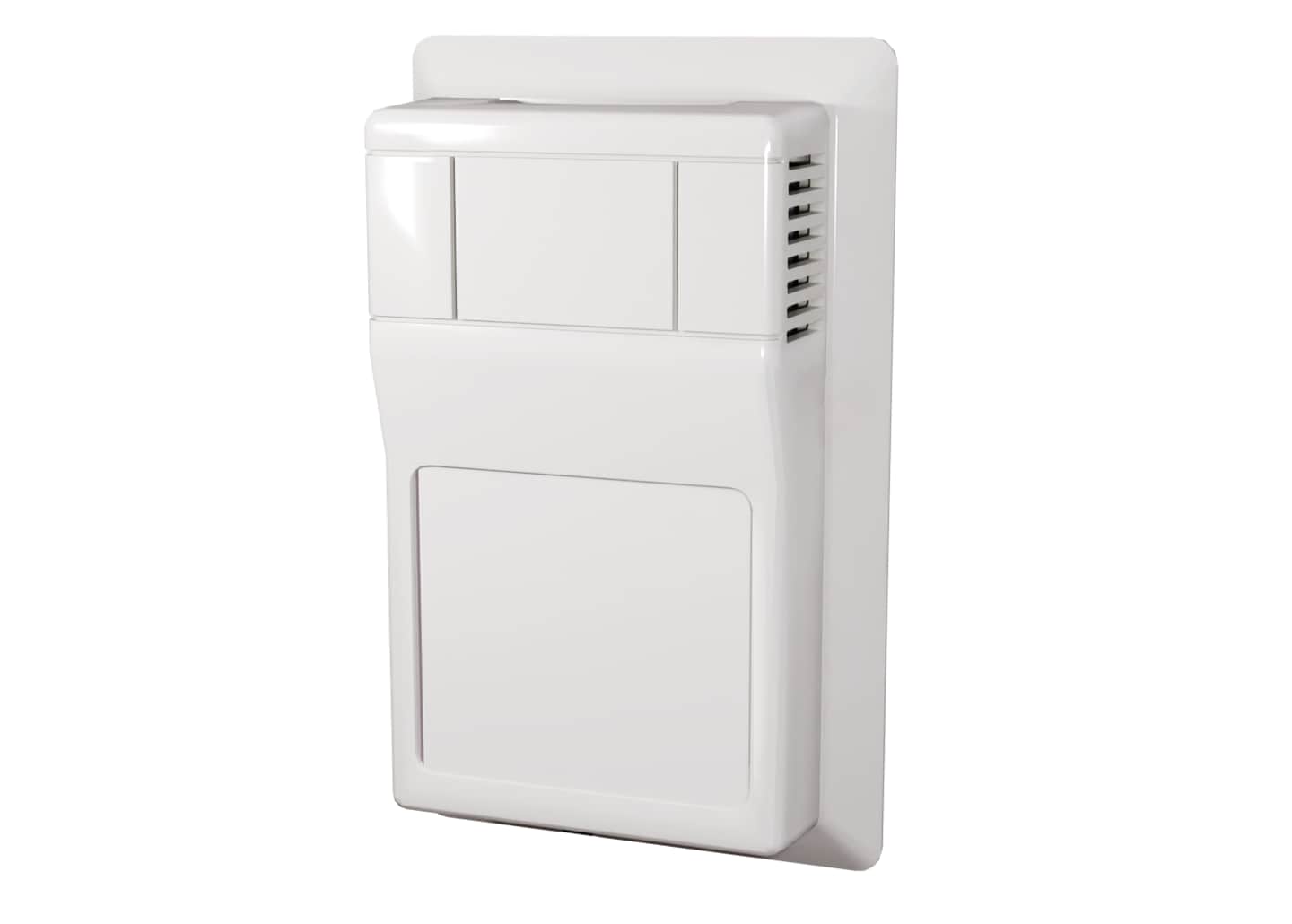

1,000 Ohm Nickel RTD, Room (R2), Comm Jack (6 Pin/6 Conductor)

판매 가격: 가격 문의

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

실시간 문의하기

제품 사양

Accuracy:21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF))

Applications:Building and Maintenance, Commercial and Industrial, OEM, Office and Commercial

Calibration Option:N/A

Curve Type:PTC (Positive Temperature Coefficient)

Display Note:LCD Display Supply Voltage: 9 V DC to 35 V DC / 24 V AC (50 Hz to 60 Hz); LCD Display Supply Current/VA: < 4 mA / 0.12 V A; LCD Display Accuracy: ±2 °F or ±2 °C at 21.5 °C (71 °F) typical; LCD Display Life Expectancy: 50,000 Hours Minimum

Display Type:LCD

Electrical Connection:Terminal block

Enclosure Ratings:UL94-HB

Number of Sensing Points:1

Operating Current:5 mA

Operating Humidity:10 to 95% RH, non-condensing

Operating Temperature, Max:121 °C

Operating Temperature, Min:-40 °C

Response Time:8 Seconds nominal

Self Heating Effect:0.3 °C / mW

Series ID:Nickel-Room

Set Point Tolerance:+/- 10% of Range
