DwyerOmegaNickel-Outdoor-Air
A/1K-NI-O-4X

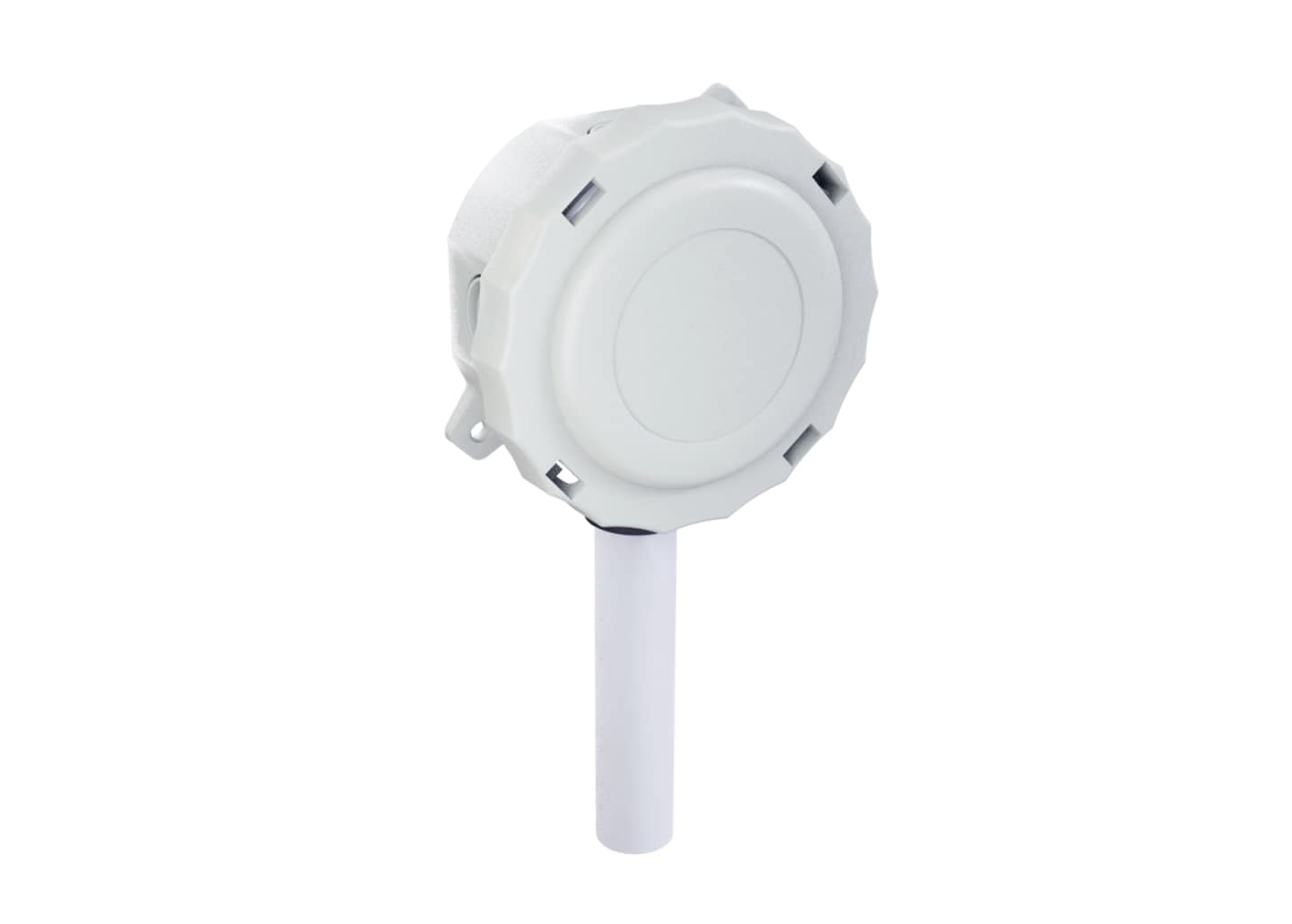

1,000 OHM NICKEL RTD, OUTSIDE AIR, NEMA
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF))
Alloy Material (-):Copper
Alloy Material (+):Copper
Applications:Building and Maintenance, Environmental Monitoring
Electrical Connection:Pigtails
Enclosure Ratings:IP66, NEMA Type 3R, NEMA Type 4X, UL94 V-0
Fitting:PVC
Insulation:Etched Teflon (PTFE) Colored Leads
Insulation Color:Orange,Yellow
Number of Sensing Points:1
Operating Current:5 mA
Operating Humidity:10 to 95% RH, non-condensing
Operating Temperature, Max:121 °C
Operating Temperature, Min:-40 °C
Response Time:30 Seconds nominal
Self Heating Effect:0.3 °C / mW
Series ID:Nickel-Outdoor-Air
Sheath Material:PVC
Stability:+/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Storage Temperature, Max:70 °C
Storage Temperature, Min:-40 °C
Temperature Coefficient:Din 43760
Temperature Measurement Range:-40 to 121°C
Wire Gauge:22 AWG
