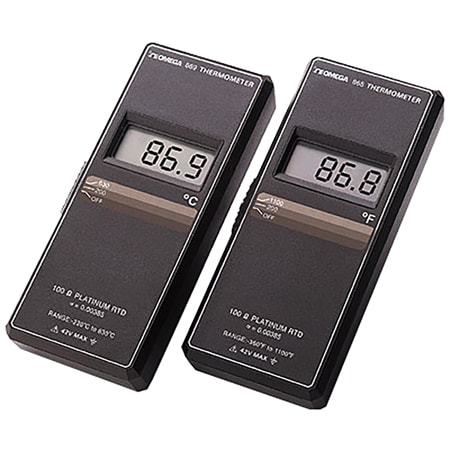

DwyerOmega868-869
869C
HAND HELD DIGITAL THERM
- 가격
- 970,820 원
- VAT 10%
- 97,082 원
- 총 금액
- 1,067,902 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Battery life:500 hr
Display Note:Display Units : °C or °F
Display Type:3.5 Digit LCD
Display Type Note:3 1⁄2 digit LCD, 13 mm (0.5") height; polarity, decimal point, open sensor and overrange indication
Height:160 mm
Lead Resistance, Max:4-wire: 50 Ω max; 3-wire: 10 Ω max
Length:31 mm
Measuring Temperature Range, Max:630 °C
Measuring Temperature Range, Min:-100 °C
Operating Temperature Note:Operating: -10 to 50°C (14 to 122°F), less than 80% RH, up to 35°C
Operating Temperature, Max:50 °C
Operating Temperature, Min:-10 °C
Relative Humidity, Max:0.9
Relative Humidity, Min:0%
Repeatability:<0.2 °F
Sampling Rate:1.5 Hz (1.5 updates/second)
Storage Temperature Note:-35 to 60°C (-31 to 140°F), less than 90% RH, up to 35°C
Storage Temperature, Max:60 °C
Storage Temperature, Min:-35 °C
Supply Power Note:Maximum Common Mode Voltage: 42V peak
Supply Voltage:9 Vdc
Temperature Accuracy:± 0.3 °C
Temperature Accuracy Note:200°C: Accuracy: ± 0.3°C; ± 1.5°C 1100°C: Accuracy: ± 1°C; ± 2°C Includes DIN 43760 conformity (no points), repeatability, temperature coefficient (18 to 28°C ambient), time stability (1 year) and errors with up to 50 Ω of resistance in each lead; excluded probe errors
Temperature Coefficient:18 to 28°C (64 to 82°F); included in accuracy specification; less than 18°C (64°F) or greater than 28°C (82°F) less than ± (0.015°C)/°C
Temperature Resolution:0.1 °C
Temperature Resolution Note:200°C: Resolution: 0.1°C 1100°C: Resolution: 1°C
Temperature Sensor Type:RTD
Temperature Sensor Type Note:3- or 4-wire 100 Ω Platinum RTD a=0.00385
Weight:210 g
Width:69 mm
