DwyerOmegaSeries-862E
862E

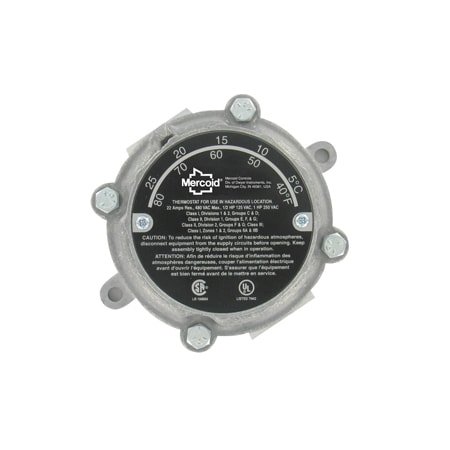

862E SPDT HEAT/COOL EXPL THERM
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Chemicals, Fuel and Gas, Oil, Petrochemical
Compliance:CSA, UL
Deadband:2.5 °F
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:NEMA Type 7, NEMA Type 9
Enclosure Ratings Note:Explosion-proof NEMA 7 & 9, Class I, Divisions 1 and 2, Groups C and D; Class II, Division 1, Groups E, F and G; Class II, Division 2, Groups F and G; Class III; Class I, Zones 1 and 2, Groups IIA & IIB.
Media Compatibility:Argon, Compatible Gases, Nitrogen
Operating Temperature, Max:176 °F
Operating Temperature, Min:-40 °F
Process Temperature, Max:82 °F
Process Temperature, Min:36 °F
Switch Note:SPDT snap action switch, 22 A @ 480 VAC (res.), 1/2 HP @ 125 VAC, 1 HP @ 250 VAC
Switch Rating:22 A @ 480 Vac, 1/2 hp @ 125 Vac, 1 hp @ 250 Vac
Switch Type:SPDT Snap
Weight:2.1 lb
