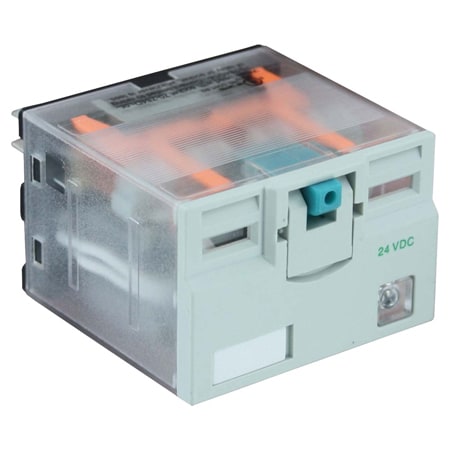

DwyerOmegaSeries-784
784XDXM4L-24A
4PDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 84.5 Ω
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 29 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:HVAC, Industrial and Manufacturing, Pump Control, Refrigeration, Refrigeration Equipment
Coil Resistance:84.5 Ω
Compliance:CE, CSA, cULus, cURus
Electrical Connection:Screw Terminal
Electrical Output:N/A
Input Control Signal:24 Vac
Life Cycle:Electrical : 100,000 cycles; Mechanical : 10,000,000 cycles
Materials:Polycarbonate
Operating Temperature, Max:131 °F
Operating Temperature, Min:-40 °F
Operating and Load Voltage:24 to 240 Vac, 24 Vdc
Power Consumption:1.5 VA; 1.5W
Storage Temperature, Max:185 °F
Storage Temperature, Min:-40 °F
Supply Current:15 A
Switch Rating:15 A @ 120 VAC ; 12 A @ 277 VAC or 28 VDC
Switch Type:3PDT or 4PDT
Trigger Voltage:24 to 240 Vac, 24 Vdc
Weight:2.8 oz
