DwyerOmegaSeries-750H

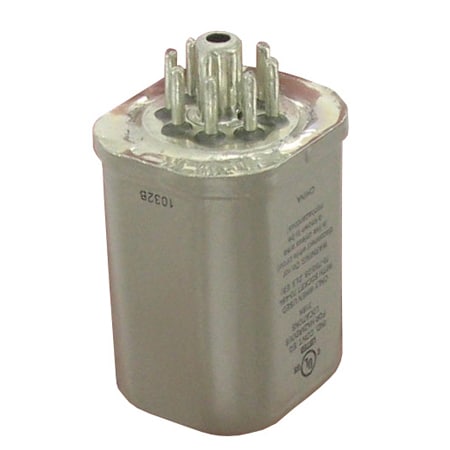

750XCXH-120A
11-pin/3PDT, input voltage 120 VAC 50/60 Hz, coil resistance 1700 ohms, 12 amp rating, plug-in
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 30 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Coil Resistance:1700 Ω
Electrical Connection:Screw Terminal
Electrical Output:N/A
Enclosure Ratings:Class 1 Div II
Input Control Signal:120 Vac
Life Cycle:Electrical : 100,000 cycles; Mechanical : 10,000,000 cycles
Materials:metal
Number Of Pins:11
Operating Temperature, Max:131 °F
Operating Temperature, Min:-40 °F
Operating and Load Voltage:24 to 120 Vac
Optional Power Note:AC operated : 85 to 110% (% of Nominal) ; DC operated : 80 to 110% (% of Nominal)
Power Consumption:1.2 VA; 0.9 W
Storage Temperature, Max:185 °F
Storage Temperature, Min:-40 °F
Supply Current:12 A
Switch Rating:12 A @ 120/240 VAC or 28 VDC
Switch Type:3PDT
Trigger Voltage:24 to 120 Vac
Weight:4.6 oz
