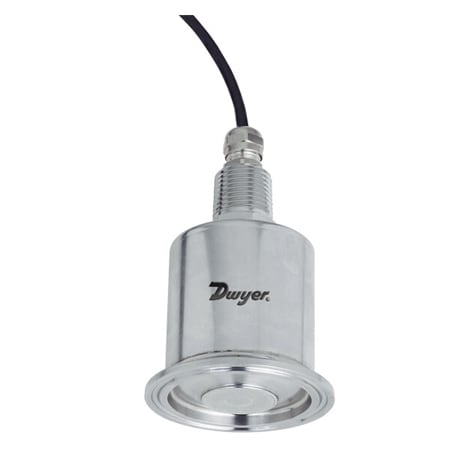

DwyerOmegaSeries-681
681-02
681-02 SAN PR XMTR 1 PSI 2 IN
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 14 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.2 %
Accuracy Detail:± .20% FS (includes non-linearity, hysteresis and non-repeatability)
Burst Pressure:50 psi Maximum
Clamping Effect:Zero and Span Shift: ± 0.15% FS
Compensated Temperature, Max:180 °F
Compensated Temperature, Min:20 °F
Electrical Connection:1/2 in NPT male Conduit with Cable
Electrical Output:4 to 20 mA
Loop Resistance:800 Ω
Materials, Wetted:316L Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:1 psi
Measurement Pressure, Min:0 psi
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Number of Wires:2
Operating Temperature, Max:260 °F
Operating Temperature, Min:-40 °F
Output Detail:4 to 20 mA
Output Signal:Current
Process Connection Size:2 in
Process Connection Type:Tri-Clamp
Relative Humidity:10 to 90% RH, Non-Condensing
Response Time:≤ 10 ms
Span Adjustment:± 0.5 mA, Non-Interactive
Supply Power Type:DC
Supply Voltage:9 to 30 Vdc
Thermal Effects:Zero and Span Shift: ± 2.0% FS/100°F
Weight:227 g
Zero Setting Adjustable Range:± 0.5 mA, Non-Interactive
