DwyerOmegaSeries-641
641-18

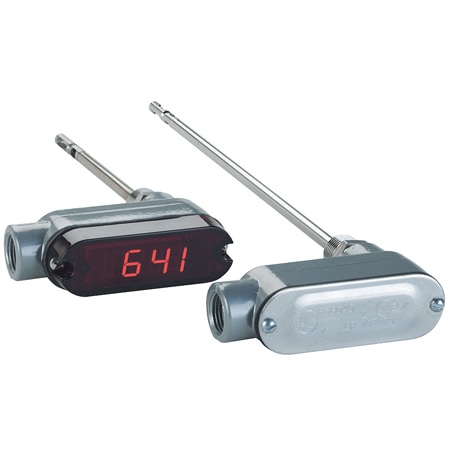

Air velocity transmitter, 18" (457.2 mm) probe length.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 3 %
Accuracy Detail:3% FS process gas: 32 to 122°F (0 to 50°C); 4% FS process gas: -40 to 32°F and 122 to 212°F
Air Velocity, Max:15000 FPM
Air Velocity, Min:250 FPM
Compliance:CE
Display Type:N/A
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:IP66, NEMA Type 4X
Filter:0.5 to 15 s (Selectable)
Loop Resistance:600 Ω max
Media Compatibility:Argon, Carbon dioxide, Clean Dry Air, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation:None
Number of Wires:4
Operating Temperature, Max:140 °F
Operating Temperature, Min:32 °F
Output Detail:4 to 20 mA, isolated 24 V source, 3 or 4-wire connection
Power Consumption:300 mA
Pressure Limits:Up to 100 psi
Probe Length:18 in
Process Connection Size:1/2 in
Process Connection Type:NPT Male
Process Temperature, Max:212 °F
Process Temperature, Min:-40 °F
Relative Humidity:Non-Condensing
Response Time:1.5 s to 95%
Response Time Note:Flow: 1.5 s to 95% of final value (output filter set to minimum)
Supply Power Note:12 to 35 Vdc, 10 to16 Vac. 1.5 A rating required on supply due to initial power surge drawn by transmitter
Supply Power Type:AC/DC
Supply Voltage:10 to 16 Vac, 12 to 35 Vdc
Weight:12.6 oz
