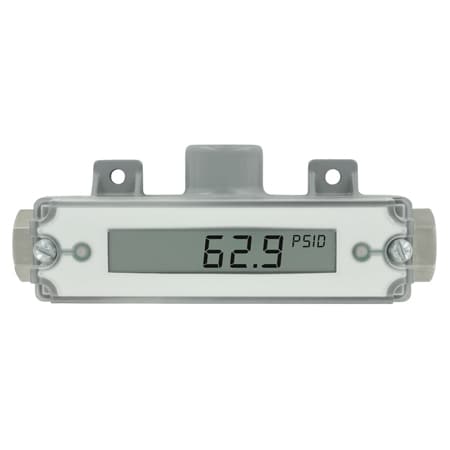

DwyerOmegaSeries-629C
629C-05-R5-P1-E5-S3
Differential Pressure Transmitter : 0-100 PSID
- 가격
- 1,673,450 원
- VAT 10%
- 167,345 원
- 총 금액
- 1,840,795 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.5 %
Accuracy Detail:± 0.5% FS (includes linearity, hysteresis and repeatability)
Applications:Filter Monitoring, Fluid Measurement and Control, Oil, Pump Control, Refrigeration, Refrigeration Equipment
Compensated Temperature, Max:79 °C
Compensated Temperature, Min:-18 °C
Compliance:CE
Display Type:N/A
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Electrical Output:0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc
Enclosure Ratings:IP66, NEMA Type 4X
Housing Construction:Conduit housing, with remote sensor and 10´ armored cable
Long Term Stability:± 1% FS/year
Loop Resistance:5 kΩ min
Material Construction Option:Remote sensor and 10´ armored cable
Materials, Wetted:316 Stainless Steel
Measurement Pressure Type:Differential
Measurement Pressure, Max:100 psi
Measurement Pressure, Min:0 psi
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam
Mounting Note:Not Position Sensitive
Number of Wires:3
Operating Temperature, Max:93 °C
Operating Temperature, Min:-18 °C
Output Detail:Field Selectable
Output Signal:Voltage
Power Consumption:max 28 mA
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Proof Pressure:Up to 500 psi
Response Time:400 ms
Span Adjustment:Push Button
Static Pressure:200 psi
Supply Power Type:AC
Supply Voltage:13 to 35 Vdc/16 to 33 Vac
Thermal Effects:0.072%/°C
Thermal Effects Note:Avg 0.04%/°F (0.072%/°C) (includes zero and span).
Zero Setting Adjustable Range:Push buttons inside conduit enclosure
