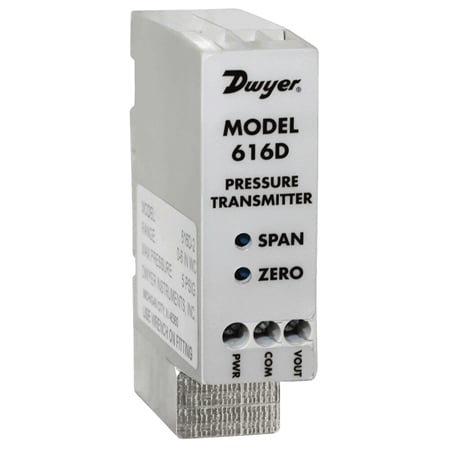

DwyerOmegaSeries-616D
616D-6
616D-6 XMTR 0-100 IN WC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.25 %
Accuracy Detail:± 0.25% FS @ 77°F (25°C)
Applications:Filter Monitoring
Compliance:CE
Display Type:N/A
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA, 0 to 10 Vdc
Long Term Stability:± 1%/year
Loop Resistance:Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.
Measurement Pressure Type:Differential
Measurement Pressure, Max:100 inH₂O
Measurement Pressure, Min:0 inH₂O
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Mounting Note:Vertical
Mounting Orientation:1.378" DIN rail
Number of Wires:2, 3
Operating Temperature, Max:85 °C
Operating Temperature, Min:-10 °C
Output Detail:Field Selectable
Output Signal:Current, Voltage
Power Consumption:max 40 mA
Process Connection Note:1/8˝ female NPT. Accessories included are 2 barbed fittings for 1/8˝ (3.12 mm) and 3/16˝ (4.77 mm) ID rubber or vinyl tubing
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Proof Pressure:Up to 15 psi
Span Adjustment:Push Button
Supply Power Type:AC/DC
Supply Voltage:2-Wire: 10 to 35 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac
Thermal Effects:± 0.036% FS/°C
Weight:136 g
Zero Setting Adjustable Range:Push button
