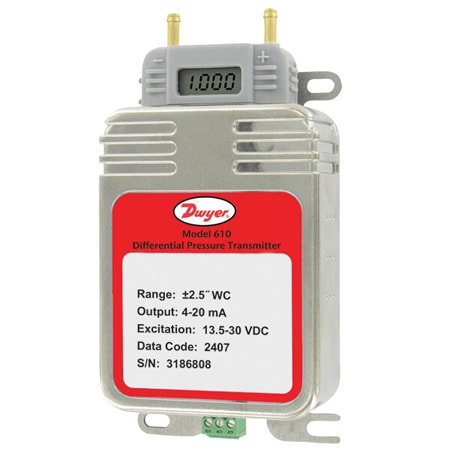

DwyerOmegaSeries-610
610-10A-DDV
610-10A-DDV PR XMTR 0-10" DIN
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.25 %
Compliance:CE
Display Type:LCD
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:Fire Retardant
Long Term Stability:± 0.5%/year
Loop Resistance:800 Ω max
Material Construction Option:DIN Rail Mount
Measurement Pressure Type:Differential
Measurement Pressure, Max:10 inH₂O
Measurement Pressure, Min:0 inH₂O
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Mounting Note:Vertical
Mounting Orientation:Base Mount
Operating Temperature, Max:71 °C
Operating Temperature, Min:-29 °C
Output Signal:Current
Power Consumption:25 mA
Process Connection Note:3/16" OD barbed brass fittings on removeable process head
Process Connection Size:3/16 in
Process Connection Type:Barbed Fitting
Proof Pressure:Up to 2 psi
Response Time:0.02 to 0.04 s
Span Adjustment:Security Key Access
Supply Power Type:DC
Supply Voltage:13.5 to 30 Vdc
Thermal Effects:0.5% FS
Weight:255 g
Zero Setting Adjustable Range:External security key pendant
