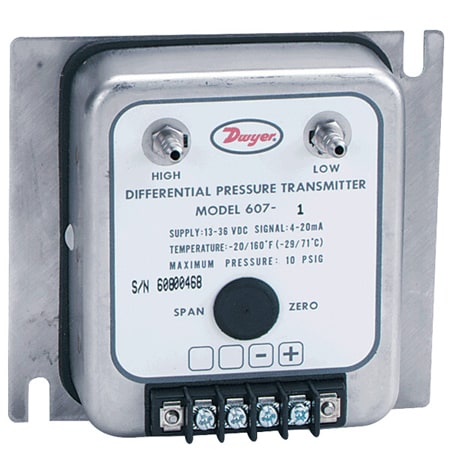

DwyerOmegaSeries-607
607-11
607-11 .25 IN WC DIFF PR XMTR
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 14 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.25 %
Compensated Temperature, Max:57 °C
Compensated Temperature, Min:2 °C
Compliance:CE
Display Type:N/A
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:IP11, NEMA Type 2
Long Term Stability:± 0.5% FS/year
Loop Resistance:0 to 1045 Ω
Materials:300 Stainless Steel
Materials, Wetted:Consult Factory
Measurement Pressure Type:Differential
Measurement Pressure, Max:0.25 inH₂O
Measurement Pressure, Min:0 inH₂O
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Number of Wires:2
Operating Temperature, Max:71 °C
Operating Temperature, Min:-29 °C
Output Signal:Current
Power Consumption:min 3.6 mA
Process Connection Note:Barbed stainless steel ID Tubing
Process Connection Size:3/16 in
Process Connection Type:Barbed Fitting
Proof Pressure:Up to 10 psi
Relative Humidity:10 to 95% RH
Response Time:250 ms
Response Time Note:250 ms max
Span Adjustment:Potentiometers
Supply Power Type:DC
Supply Voltage:12 to 36 Vdc
Thermal Effects:± 0.015% FS/°F
Thermal Effects Note:± 0.015% FS/°F (zero and span).
Weight:472 g
Zero Setting Adjustable Range:Externally accessible potentiometers, non interactive, ± 10% FS adjustment
