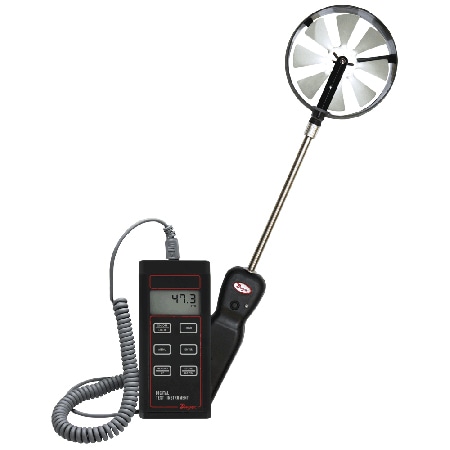

DwyerOmegaModel-473B
473B-1
473B-1 DIG TEST INST, VP1
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy Detail:Air velocity: ±1.5% of reading ±20 FPM (±0.1 m/s) [0.25 to 10 m/s]; ±1.5% of reading ±40 FPM (±0.2 m/s) [10 to 20 m/s]; ±1.5% of reading ±60 FPM (±0.3 m/s) [20 to 25 m/s], Temperature: ±0.9°F @ 77°F (±0.5°C @ 25°C), Relative humidity: ±2% @ 77°F (25°C) [10 to 90% RH]; ±4% [0 to 10, 90 to 100% RH]
Air Velocity Accuracy:±1.5%
Air Velocity, Max:5000 FPM
Air Velocity, Min:40 FPM
Applications:HVAC, Industrial and Manufacturing
Battery Size and Type:Alkaline 9V
Cable Length:28 in
Cable Length Note:28˝ (71 cm) retracted; 6´ (18.3 m) extended
Compliance:RoHS 3
Display Note:4.5 digit backlit display; 19,999 in selected flow units
Display Type:Backlit LCD
Humidity Accuracy:± 2% RH
Humidity Range:0 to 100% RH
Humidity Response Time:1.5 s
Materials:Anodized Aluminum
Measurement Type:Air Velocity, Volumetric Flow, Temperature, Humidity
Media Compatibility:Argon, Carbon dioxide, Clean Dry Air, Helium, Nitrogen, Non-Corrosive Dry Gases
Operating Temperature, Max:125 °F
Operating Temperature, Min:5 °F
Probe Length:8 in
Process Temperature, Max:212 °F
Process Temperature, Min:-20 °F
Response Time:Air Velocity: 1 s, Air Volume: 1 s, Temperature: 1.5 s
Supply Power Note:9 V alkaline battery, installed non-functional, user replaceable
Supply Power Type:Battery
Temperature Accuracy:± 0.9 °F
Temperature Measurement Range:- 20 to 212 °F
Weight:18.4 oz
