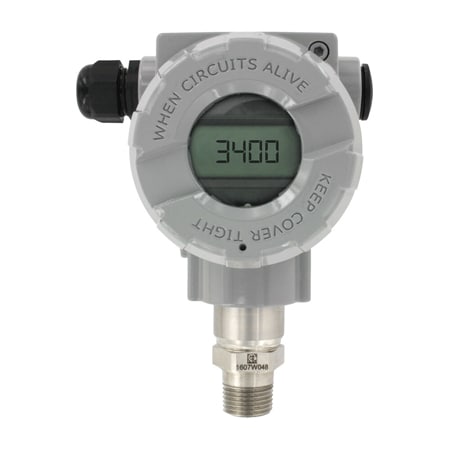

DwyerOmegaSeries-3400
3400-AL-23-NM-2
3400 SMART PR XMTR 0-4350 PSI
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 19 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.075 %
Accuracy Detail:± 0.075% FS (@ 20°C)
Applications:Chemicals, Filter Monitoring, Food and Beverage, Fuel and Gas, Oil, Petrochemical, Pump Control
Burst Pressure:30 psi Maximum
Compliance:CE
Compliance Note:CE; -IS, -FP suffix: ATEX Compliant 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. Type Certificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014. IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013
Damping Time:0 to 60 s
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Electrical Output:4 to 20 mA, HART
Enclosure Ratings:IP66, IP67, NEMA Type 4X
Loop Resistance:Operation: 0 to 1500 Ω; HART® communication: min. 240 Ω, max. 1100 Ω.
MTBF:1,000,000 hours
Materials:Aluminum
Materials, Wetted:316L Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:4350 psi
Measurement Pressure, Min:0 psi
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Operating Temperature, Max:185 °F
Operating Temperature, Min:-40 °F
Output Detail:4 to 20 mA
Output Signal:Current
Process Connection Size:1/2 in
Process Connection Type:NPT Male
Response Time:16 to 480 ms
Set Point, Min:1.45 psi
Stability:≤0.075% FSO/3 years
Supply Power Type:DC
Supply Voltage:10 to 55 Vdc
Thermal Effects:< ± 0.05% span/10°C
Turndown Ratio:100:1
