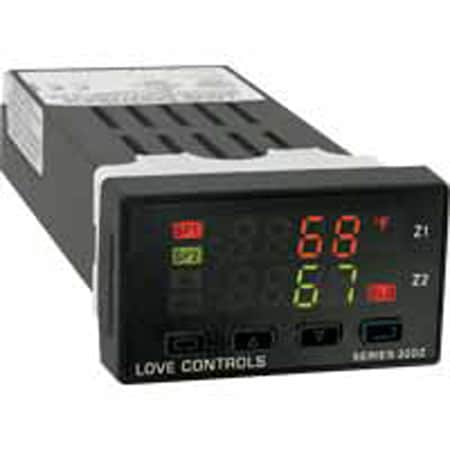

DwyerOmegaSeries-32DZ
32DZ1122
Temperature/process controller, thermocouple inputs, 5 VDC outputs.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.25% span ± 1 least significant digit
Control Output:AC SSR Relay
Display Note:Two 4-digit, 7 segment, 0.25" high (6.35 mm) LEDs
Display Type:LED
Enclosure Ratings:IP66, NEMA Type 4X
Input Type:Thermocouple
Memory Backup:Non-Volatile
Mounting Orientation:1/32 DIN
Number of Digits:4
Operating Temperature, Max:131 °F
Operating Temperature, Min:14 °F
Output Note:Switched Voltage (non-isolated, Output A, Output B): 5 Vdc @ 20 mA.
Output Type (A):Voltage Pulse
Output Type (B):N/A
Power Consumption:max 5 VA
Supply Power Note:100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz single phase; 132 to 240 VDC, nominal, +10 - 20%
Supply Power Type:AC/DC
Supply Voltage:100 to 240 Vac/132 to 240 Vdc
Temperature Sensor Type:Thermocouple
Thermocouple Input Range Note:Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type E: 32 to 1112°F; Type L: -328 to 1562°F
Voltage Output Range:5 Vdc
Weight:4 oz
