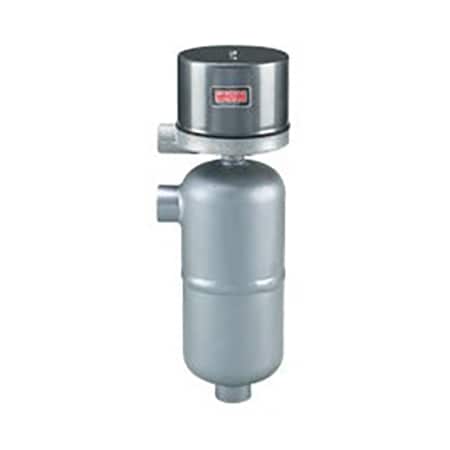

DwyerOmegaSeries-201-203-204
201-WT-7810-C1-60
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Conduit Connection:3/4 in NPT Female
Electrical Connection:Screw Terminal
Enclosure Ratings:IP66, NEMA Type 4
Measurement Pressure Type:Gauge
Media Compatibility:Alcohols, Compatible Liquids, Oils, Water
Mounting Orientation:Vertical
Pressure Note:600 psig (41 bar) at 100°F (37.7°C), 500 psig (34 bar) at 750°F (399°C). Higher ratings available
Process Connection Note:1˝ female NPT and 1˝ socket weld hub. Optional flange connections
Process Connection Size:1 in
Process Connection Type:NPT Female
Process Temperature Note:Process: 750°F (399°C). Heat fins should be used for process temperatures above 500°F (260°C) with mercury switches, 400°F (204°C) with snap switches, and 350°F (176.7°C) with hermetically sealed snap switches
Process Temperature, Max:350 °F
Proof Pressure:Up to 600 psi
Set Point Adjustment:± 1 in
Specific Gravity:0.6
Switch Type:SPDT NO/NC, Selectable
Switch Type Note:SPDT hermetically sealed snap switch
Weight:33 lb
