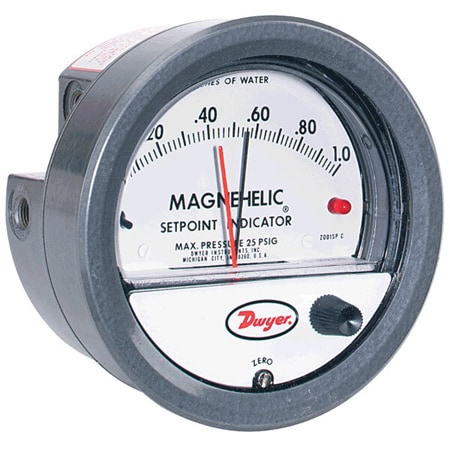

DwyerOmegaSeries-2000-SP
2001-SP
Differential Pressure Gage: 0-1" w.c.
- 가격
- 482,330 원
- VAT 10%
- 48,233 원
- 총 금액
- 530,563 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 2 %
Accuracy Detail:± 2% (-HA model ± 1) of FS (± 3% (-HA ± 1.5%) on -0, -100PA, -125PA, -10MM and ± 4% (-HA ± 2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Additional Features 1:LED Set Point Indicator
Dial Dia:4 in
Dual:false
Enclosure Ratings:IP67
Materials:Aluminum, Acrylic
Materials, Wetted:Consult Factory
Measurement Pressure Type:Differential
Measurement Pressure, Max:1 inH₂O
Measurement Pressure, Min:0 inH₂O
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation:Vertical Diaphragm
Operating Temperature, Max:140 °F
Operating Temperature, Min:20 °F
Pressure Limits:-20 inHg to 80 psi
Process Connection Note:1/8˝ female NPT duplicate high and low pressure taps - one pair side and one pair back.
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Safety Features:Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.
Weight:510 g
