DwyerOmegaSeries-1640
1640-2

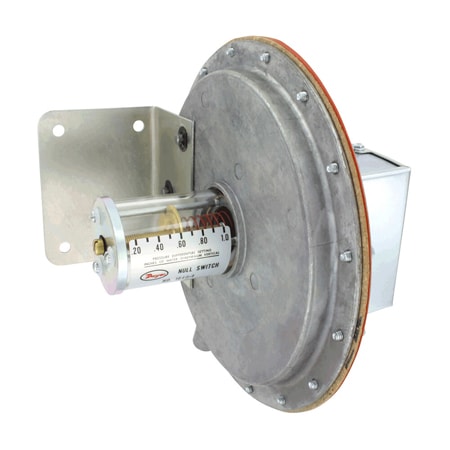

1640-2 PRESS SW 1-4 INWC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:CE
Deadband:0.03 to 0.12 inH2O
Electrical Connection:Screw Terminal
Materials, Wetted:Consult Factory
Measurement Pressure Type:Differential
Measurement Pressure, Max:4 inH₂O
Measurement Pressure, Min:1 inH₂O
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation:Vertical Diaphragm
Operating Temperature, Max:110 °F
Operating Temperature, Min:-30 °F
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Proof Pressure:Up to 10 psi
Set Point Adjustment:Internal Screw
Switch Note:SPDT floating contact (not snap action), Non-inductive — 2.5A @ 110 VAC; 1.5 A @ 220 VAC; 1 A @ 24 VDC; 0.5 A @ 110 VAC; Inductive — 1 A @ 110 VAC; 0.5 A @ 220 VAC; 0.5 A @ 24 VDC (de-rate 70-80% for very slow pressure changes)
Switch Rating:Non-inductive: 2.5A @ 110 Vac, 1.5 A @ 220 Vac, 1 A @ 24 Vdc, 0.5 A @ 110 Vac; Inductive: 1 A @ 110 Vac, 0.5 A @ 220 Vac, 0.5 A @ 24 Vdc
Switch Type:SPDT NO/NC, Selectable
Weight:2.18 kg
