DwyerOmega10250T-Series

10250TM13

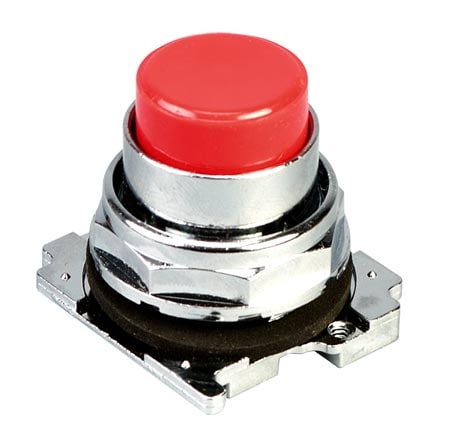

Heavy-Duty 30.5mm Metal Push Buttons, Selector Switches, Contact Blocks, Legend Plates and Pushbutton Enclosures

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accessory Type:Legend Plates

Additional Features 1:E-stop

Altitude:2000 m

Approvals:CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551

Color Options:N/A

Contact Blocks:N/A

Current, Max:0.5 A

Electrical Rating:Ui = 660 Vac or Vdc

Enclosure Ratings:IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X

Mechanical Life:10 x 10⁶ operations

Mounting Torque (Front-of-Panel):N/A

Operating Forces (Front-of-Panel):N/A

Operating Temperature, Max:66 °C

Operating Temperature, Min:-17 °C

Pushbutton Material:N/A

Pushbutton Size:N/A

Relative Humidity, Max:95% RH @ 60°C (140°F)

Source of Light:N/A

Storage Temperature, Max:80 °C

Storage Temperature, Min:-40 °C

Supply Voltage:N/A

Switch Operation:N/A

Switch Type:Emergency Stop

Voltage, Max:120 Vac/Vdc
