DwyerOmegaSeries-102-1102

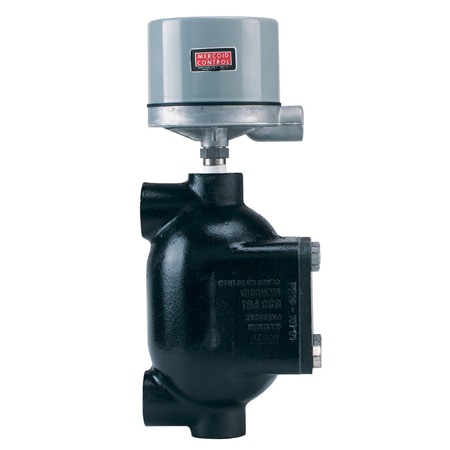

102-WT-7810-C-60
Flanged chamber type level control, SPDT snap switch.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Cable Material:N/A
Compliance:UL
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP66, NEMA Type 4X
Material Construction Option:N/A
Materials, Wetted:303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 430 Stainless Steel, Carbon Steel, Iron, Steel
Measurement Pressure Type:Gauge
Media Compatibility:Alcohols, Compatible Liquids, Oils, Water
Mounting Orientation:Vertical
Operating Temperature, Max:212 °F
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Process Temperature, Max:425 °F
Proof Pressure:Up to 300 psi
Repeatability:±1.4"
Set Point Adjustment:± 1 in
Specific Gravity, Min:0.6
Switch Note:12 A @ 120 Vac, 5 A @ 240 Vac, 0.5 A @ 125 Vdc resistive, 0.25 A @ 250 Vdc resistive
Switch Rating:30 VA: 0.14 A @ 220 Vac
Switch Type:SPDT Snap
Weight:35 lb
