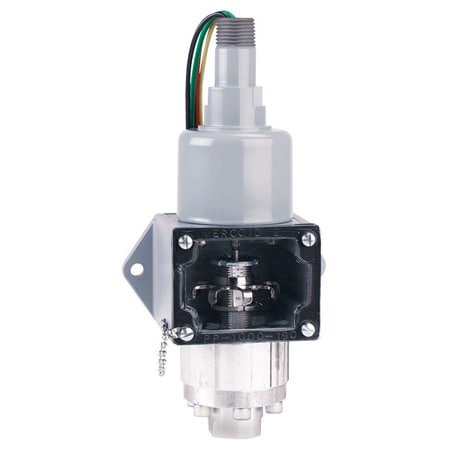

DwyerOmegaSeries-1000E
1004E-B2-J
1004E-B2-J PRESS SW
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:UL
Deadband:5 psi
Electrical Connection:1/2 in NPT male Conduit with Pigtail Leads
Enclosure Ratings:Hazardous Location Rated
Enclosure Ratings Note:Explosion-proof, UL listed for Class I, Groups A, B, C and D; Class II, Groups E, F, and G
Material Construction Option:Stainless Steel
Materials, Wetted:316 Stainless Steel, FEP
Measurement Pressure Type:Gauge
Measurement Pressure, Max:70 psi
Measurement Pressure, Min:10 psi
Mounting Orientation:Not Position Sensitive
Operating Temperature, Max:170 °F
Operating Temperature, Min:-30 °F
Pressure Limits:Up to 3000 psi
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Set Point Adjustment:Internal Thumbwheel or Nut
Switch Note:15 A @ 125/250/480 VAC res., 0.5 A @ 125 VDC, 0.25 A @ 250 VDC.
Switch Rating:15 A @ 125/250/480 Vac, 0.5 A @ 125 Vdc, 0.25 A @ 250 Vdc
Switch Type:SPDT Snap
Weight:3 lb
Wire Gauge:18 AWG
문서 및 매뉴얼
