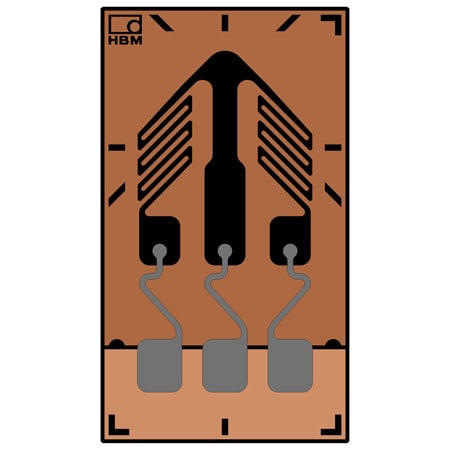

DwyerOmegaHBM-M-Shear
1-XM41-3/350GE
Shear, 3 mm Grid Length, 3 mm Grid Width
- 가격
- 575,140 원
- VAT 10%
- 57,514 원
- 총 금액
- 632,654 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 15 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Adhesive:Z70, EP310S
Bend Radius, Min:5 mm
Carrier Length:15 mm
Carrier Thickness:35 μm
Carrier Width:8.2 mm
Electrical Connection:Solder Pads
Elongation:10000 µm to 15000 µm
Encapsulation Thickness:25 μm
Gauge Factor:2.2
Gauge Factor Tolerance:± 0.7 %
Grid Length:3 mm
Grid Style:Shear
Grid Thickness:5 μm
Grid Width:3 mm
Material Expansion Compensation:Steel
Materials:Glass Fiber Reinforced Phenolic, Polymide, Chromium-Nickel
Mechanical Life:10⁷ cycles
Mechanical Life Note:107 cycles at 2000 µm/m 106 cycles at 2200 µm/m 104 cycles at 3100 µm/m
Nominal Resistance:350 Ω
Operating Temperature, Max:300 °C
Operating Temperature, Min:-200 °C
Pack Size:5
Resistance Tolerance:±0.3%
Strain, Max:10,000 µm
Temperature Compensation:10.8 ppm/K
Voltage, Max:10 Vrms
