DwyerOmegaHBM-M-Linear
1-LM11-3/350GE

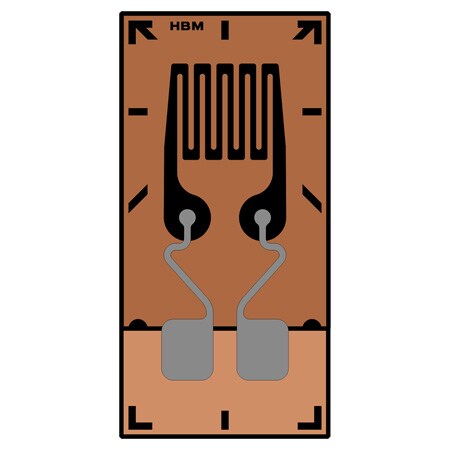

OMEGA/HBM Strain Gages | High Temperature and Resistance to Alternating Loads
- 가격
- 411,190 원
- VAT 10%
- 41,119 원
- 총 금액
- 452,309 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 14 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Bend Radius, Min:5 mm
Carrier Length:11.8 mm
Carrier Thickness:35 μm
Carrier Width:5.4 mm
Electrical Connection:Solder Pads
Elongation:10000 µm to 15000 µm
Encapsulation Thickness:25 μm
Gauge Factor:2.2
Gauge Factor Tolerance:± 0.7 %
Grid Length:3 mm
Grid Length Range:3 mm
Grid Style:Linear
Grid Thickness:5 μm
Grid Width:3.4 mm
Input Voltage:11 Vac
Materials:Glass reinforced phenolic, Chromium-Nickel, Polyimide
Mechanical Life:10⁷ cycles
Mechanical Life Note:10⁷ cycles at 2000 µm/m, 10⁶ cycles at 2200 µm/m, 10⁴ cycles at 3100 µm/m
Nominal Resistance:350 Ω
Operating Temperature, Max:300 °C
Operating Temperature, Min:-200 °C
Pack Size:10
Resistance Tolerance:±0.3%
Temperature Compensation:10.8 ppm/K
Voltage, Max:11 Vrms
